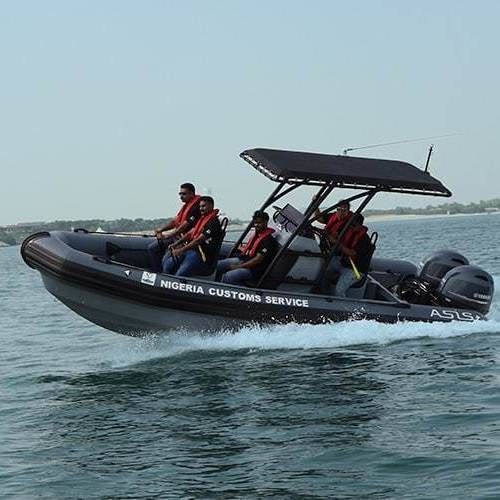

Patrol boat 9.5 M

outboardaluminumrigid hull inflatable boat

Overview
ASIS Boats purpose-built Police Boats are rigid-hulled inflatable boats (RHIBs) designed for law enforcement and coastal patrol operations. They are described as fast, agile, durable and configurable for multi-mission use. The boats are manufactured in multiple hull types and sizes and can be equipped for long missions, crime prevention, interdiction, VBSS and a wide range of professional tasks.

Key Features

• Hull options: Aluminum hull (FoamShield) or Fiberglass hull (Air Hull)
• Tube options: Air filled or Hyb Foam / Foam filled tubes
• Available as fully inflatable variants for portability and rapid deployment
• Multiple propulsion choices: Inboard, Outboard, Stern Drive, Jet Drive
• Configurable seating and storage arrangements
• Advanced navigation and communication systems
• Tactical lighting, weapon mounts and other specialized equipment
• Amphibious upgrade option available (motorised retractable wheels system)

Customization & Options

• Hull material selection: Aluminum or Fiberglass
• Tube construction: air-only or Hyb Foam® / foam-filled tubes for increased ruggedness
• Amphibious capabilities (4WD retractable wheel system available)
• Customizable seating: bucket seats, leaning posts, suspension seats, benches, shock-mitigating seats
• Console / cabin options: open deck consoles, cabins, full enclosures, various T-top and canopy choices
• Frames and posts: bow reinforcement, stern posts, frames for weapon mounts and self-righting options
• Accessories for law enforcement: search lights, non-skid EVA foam surfaces, weapon mounts, rescue nets, dive ladders, foam push bow, shock mitigating consoles

Technical specifications (representative configurations shown on the page)
FIBERGLASS LAW ENFORCEMENT BOATS (examples):
14 M Cabin
Length Overall: 15.1 m – Beam: 3.85 m – Lightship Weight: 9,400 kg – Payload: 3,045 kg – Collar: Air or Foam – Tube Diameter: 0.6 m – No of Air Chambers: NA – Rec. Power: 4×400 Hp – Max. Power Allowed: 4×500 Hp – Max. Speed: 103 km/h – Max. Fuel Capacity: 420 US Gal – No of Pax: 15 – Propulsion: Outboard / Inboard – Classification: B

12 M Cabin
Length Overall: 12.2 m – Beam: 3.75 m – Lightship Weight: 4,976 kg – Payload: 2,742 kg – Collar: Air or Foam – Tube Diameter: 0.56 m – No of Air Chambers: 9 – Rec. Power: 3×350 Hp – Max. Power Allowed: 3×400 Hp – Max. Speed: 105 km/h – Max. Fuel Capacity: 298 US Gal – No of Pax: 15 – Propulsion: Outboard / Inboard – Classification: B

12 M (open configuration)
Length Overall: 12.2 m – Beam: 3.75 m – Lightship Weight: 3,976 kg – Payload: 2,742 kg – Collar: Air or Foam – Tube Diameter: 0.56 m – No of Air Chambers: 9 – Rec. Power: 2×400 Hp – Max. Power Allowed: 3×400 Hp – Max. Speed: 129 km/h – Fuel: 298 US Gal – Pax: 15 – Propulsion: Outboard / Inboard – Class: B

9.5 M (example)
Length Overall: 9.7 m – Beam: 3.17 m – Lightship Weight: 2,580 kg – Payload: 1,950 kg – Collar: Air or Foam – Tube Diameter: 0.56 m – No of Air Chambers: 7 – Rec. Power: 2×250 Hp – Max. Power Allowed: 2×400 Hp – Max. Speed: 121 km/h – Fuel: 197 US Gal – Pax: 15 – Propulsion: Outboard / Inboard – Class: B

8.5 M / 8 M / 7.2 M / 6.5 M / 5.5 M / 5.1 M / 4.1 M examples are shown with corresponding lengths, beams, lightship weights, payload, tube diameters, recommended and max power, maximum speeds, fuel capacity and passenger numbers. (Ranges shown across models: lengths from ~4.1 m up to 15.1 m; max speeds in examples from ~51 km/h up to ~129 km/h).

D-TUBE ALUMINUM BOATS (examples):
17 M
Length Overall: 17.2 m – Beam: 5.2 m – Lightship Weight: 18,000 kg – Payload: 4,250 kg – Collar: NA – Tube Diameter: NA – Rec. Power: 2×1150 hp – Max Power Allowed: 2×1150 hp – Max Speed: 81 km/h – Fuel Capacity: 792 US Gal – No of Pax: 25 – Propulsion: Outboard / Inboard

13 M
Length Overall: 14 m – Beam: 3.9 m – Lightship Weight: 6,765 kg – Payload: 2,315 kg – Collar: Hyb Foam® – Tube Diameter: 0.56 m – Rec. Power: 3×400 hp – Max Power Allowed: 3×450 hp – Max Speed: 109 km/h – Fuel Capacity: 317 US Gal – No of Pax: 18

11.5 M / 9.5 M / 8.5 M / 7.6 M / 6.5 M examples provided with dimensions, weights, tube types (Hyb Foam®), recommended power and performance metrics.

FULLY INFLATABLE BOATS (examples):
6.0 M
Length: 6.0 m – Beam: 2.34 m – Lightship Weight: 363 kg – Payload: 1,350 kg – Collar: Air only – Tube Diameter: 0.48 m – No of Air Chambers: 5 – Rec. Power: 50 hp – Max: 65 hp – Max Speed: 24 km/h – Portable – Pax: 12

5.85 M, 5.1 M, 4.8 M, 4.7 M, 4.2 M, 3.5 M, 3.2 M, 2.8 M (examples) – each listing length, beam, weights, payload, tube type, tube diameter, number of air chambers, recommended and max power, speeds, fuel capacity (where applicable), passenger capacities and propulsion type (mostly outboard / portable).

Operational strengths

• Designed for durability in rough seas and harsh conditions
• High agility and versatility for long missions and rapid-response operations
• Multiple platform support: fiberglass, aluminum and fully inflatable variants
• Wide accessory ecosystem to equip mission-specific systems (e.g., weapon mounts, search lights, rescue equipment)

Note
Page content shows many representative configurations and accessories to tailor boats to specific law enforcement mission requirements. Exact specifications, configurations, and classification depend on the chosen hull type, size and customer-selected options. Detailed model-specific technical tables are included above as representative examples.

caractéristiques / spécifications techniques

• Marque: ASIS Boats
• Types de coque: Fiberglass (Air Hull®), Aluminium (FoamShield®), Fully Inflatable
• Tube: Air-filled or Hyb Foam® / Foam-filled
• Propulsion: Outboard, Inboard, Stern Drive, Jet Drive
• Longueur: examples from 2.8 m up to 17.2 m (representative sizes shown)
• Capacité passagers: examples range from 4 up to 25 pax depending on model
• Vitesses maximales (exemples): from ~15 mph / 24 km/h (small inflatables) up to ~129 km/h for high-performance fiberglass models
• Capacité carburant (exemples): from ~24 US Gal (small inflatables) up to ~792 US Gal on large aluminium models
• Accessoires: non-skid EVA foam, aluminium bow reinforcement, search lights, shock-mitigating consoles, weapon mounts, suspension seats, foam tubes, dive ladders, rescue nets
