Emergency light AQLRL

life raftLEDfor integration

Overview

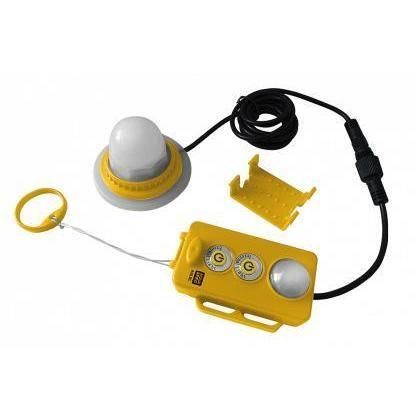

The AQLRL Liferaft Light is a lithium-battery emergency light designed for integration with liferafts. It provides an external flashing beacon for visual signalling and an internal steady white light for reading instructions and basic interior illumination. Both lights activate automatically when the liferaft inflates and can also be operated manually.

Features

• White LED dome lights providing external flashing and internal steady illumination
• Separate internal and external light assemblies
• Automatic water activation via built-in sensors and manual on/off switch
• Fixing clip and O-ring arrangement for automatic deployment on inflation
• Compact, lightweight design for easy stowage
• Maintenance-free battery service life: 5 years storage
• Tamper-proof construction

Fitting

• Disconnect the wire connector to separate the external light from the main body.
• Unscrew the fixing ring from the external light and secure it to the apex fabric of the liferaft canopy; ensure the rubber sealing ring is seated correctly.
• Install the internal light inside the liferaft using the provided buckle.
• Fit the O-shaped ring so it is held in place and will be pulled free automatically when the liferaft inflates.
• Reconnect the external light to the main body using the wire connector after installation.

Operation

• When the liferaft inflates the O-shaped ring is pulled free, releasing the switch clip and activating both the internal steady light and the external flashing beacon.

Specifications
Model: AQLRL Liferaft Light
Colour: White LED
Activation: Water Auto / Manual
Dimensions: 71.5mm (h) x 44.7mm (w) x 24.5mm (d)
Weight: 119 grams
Battery Type: Lithium
Output: External Light: ≥4.3cd Internal Light: ≥0.5cd
Duration: ≥15h over 4.3cd at -30ºC
Storage Life: 5 Years from Date of Manufacture
Approvals: EU MED / UK MER / USCG / ISO 24408:2005

Technical specifications

• Model: AQLRL Liferaft Light
• Power source: Lithium battery
• External output: ≥4.3 candela
• Internal output: ≥0.5 candela
• Operating duration: ≥15 hours at ≥4.3cd at -30°C
• Activation methods: Automatic (water sensors) and Manual (on/off switch)
• Dimensions: 71.5mm (h) x 44.7mm (w) x 24.5mm (d)
• Weight: 119 grams
• Storage life: 5 years from date of manufacture
• Approvals: EU MED, UK MER, USCG, ISO 24408:2005
