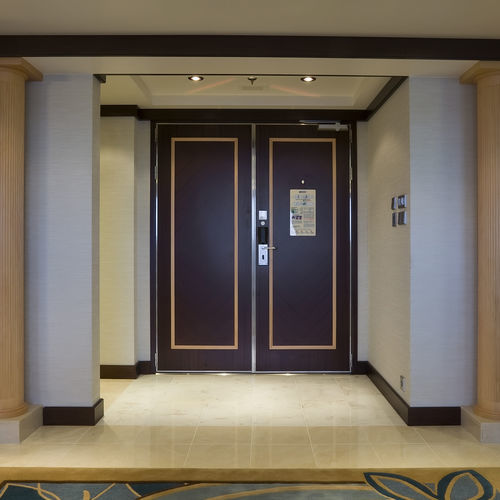

Ship door MEDB series

interior

Antti Marine doors are IMO and USCG approved products. USCG approval is based on the agreement between the United States of America and EEA EFTA states on the mutual recognition of certificates of conformity for marine equipment. All Antti Marine doors are tested and approved according to latest regulations and standards. The doors comply with Marine Equipment Directive (MED), 2014/90/EU and regulation (EU) 2017/306. Item No. MED/3.16. SOLAS 74 as amended, Regulation II-2/9, IMO 2010 FTP Code and IMO MSC.1/Circ.1511. Our door range includes a large variety of door types for ship and offshore applications. MEDB00002TM (single leaf) clear open max. 950 x 2050 mm (B-class) door leaf thickness 40 mm frame gasket included (no sill gasket) equipment options ventilation grill up to 300 cm2 round window up to clear open D350 mm door closer consealed or surface assembly MEDB00002ZF (double leaf) clear open max. 2000 x 2100 mm (B-class) door leaf thickness 40 mm frame gasket included (no sill gasket) equipment options door closer surface assembly MED-B-8333 (double leaf) clear open max. 1450 x 2000 mm (B-class sound reduction model) door leaf thickness 50 mm frame gasket and sill gaskets included sound reduction value up to 40 dB Rw equipment options door closer surface assembly
