Tugboat ZDRIVE

tugboat
tugboat
Add to favorites
Compare this product


Characteristics

Length

26.5 m
(86'11" )

Passenger capacity

8 unit

Description

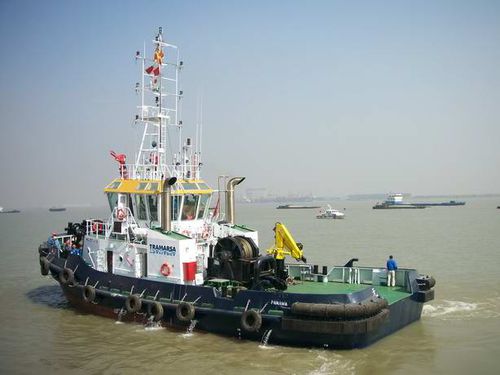

This twin screw azimuth fixed pitch propellers tugboat designed by our company to carry out general service for harbor duties, towing, pushing, fire fighting and offshore activities. It equipped with after towing winch and hook for towing, stem nose for pushing. Type of vessel: Azimuth harbor tug A. Principal Particulars Length overall: 26.50M Length B.P.: 25.40M Beam moulded: 9.80M Depth moulded: 4.50M Draft designed: 3.50M Crew: 8 men Fresh water: ~20 M3 Fuel oil: ~90 M3 Lub. oil: ~ 8 M3 (for Main Engines & Generators) Dirty oil tank: 3M3 Ballast tank: 3 M3 Foam tank: 6 M3 Dispersant tank: 4 m3 Maine engine : 2 x Cummins QSK60 2,200 bhp @1,800 rpm Speed: 12 knots at trial condition Bollard pull ahead: 55 mt Ahead with main engines at 100% MCR Bollard pull aft: 45 mt Astern with main engines at 100% MCR Classification: ABS+A1 (E), Towing Vessel, +AMS C
