Cruising cruise ship Dream

solar powered

Description
Custom-designed and built to your specifications. With Ampereship you receive a tailor-made electric passenger vessel precisely adapted to operational requirements. Whether for scheduled routes, excursion service or a special solution, each project is developed, planned and executed individually. The result is an emission-free passenger vessel that integrates propulsion technology, on-board comfort and interior design to meet operational needs.

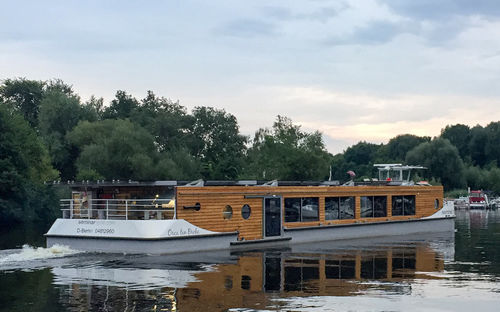

Example vessel Orca ten Broke
Length overall: 35.30 m
Beam overall: 8.25 m
Draft: 1.10 m
Service speed: 13 km/h
Maximum speed: 6 km/h
Max. passengers: 199

Equipment / special features

• Telescopic spud poles (anchor piles): deployable supports up to 6 m for secure station-keeping.
• Contemporary interior layout: high ceiling clearance and extensive indirect lighting elements to reduce energy consumption.
• High insulation performance: 30 cm wall thickness and triple-glazed windows; thermal concept comparable to a low-energy building for stable temperatures in summer and winter.
• Underfloor heating: efficient heat distribution for passenger comfort.
• Solar roof: photovoltaic system up to 32 kW; under favorable conditions can cover on-board energy demand and recharge batteries.
• Accessibility: wheelchair ramp, wide doorways and spacious accessible toilet with grab rails and alarm function.

Gallery
Project images and sample photos (photo series of the seminar/custom vessel).

Technical specifications

• Model example: Orca ten Broke
• Length overall: 35.30 m
• Beam overall: 8.25 m
• Draft: 1.10 m
• Service speed: 13 km/h
• Maximum speed: 6 km/h
• Max. passengers: 199
• Solar system: up to 32 kW
• Battery capacity (example): 250 kWh
• Insulation / wall thickness: 30 cm, triple-glazed windows
• Mooring / station-keeping: telescopic spud poles up to 6 m
• Comfort: underfloor heating, accessible boarding
