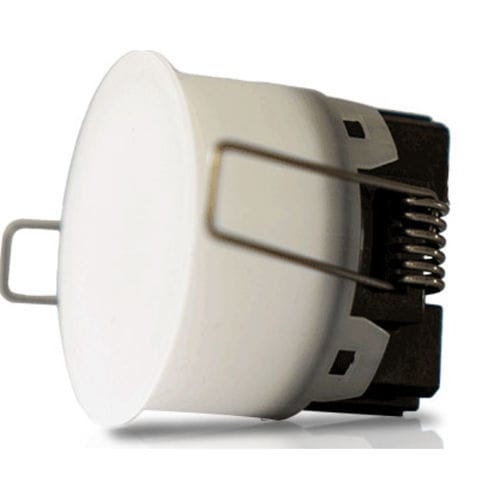

Exterior lighting spotlight SMARTSPOT 50 ON-OFF

for interior lightingfor boatlighting

Overview The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart. Ghost shape: thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame can be customizable and has to be ordered separately if required.
Light quality The use of a technological material for the lens delivers an incredibly homogeneous enlightened surface; when the downlights are turned off it completely hides all the internal components for an elegant appearance. Light is emitted by 8 OSRAM LEDs arranged following a luminous flux study for optimal result. Standard white temperature is 3.000K (warm white) but other white temperatures are available on request.
Construction & materials Total plastic body eliminates risk of galvanic currents and potential corrosion, making the downlight safe for marine use. Lens material: technological plastic. Heatsink material: dissipative plastic. Uses automotive-certified electronic components to withstand battery voltage peaks and includes an automatic shut-off system to prevent damage from overvoltages.
Electrical & protection Suitable for 24Vdc systems; compatible with 230Vac systems by adding an external power supply unit. Electronics designed to resist voltage peaks up to 60Vdc (device automatically shuts down from 32Vdc up to 60Vdc to prevent damage). Includes protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks. EMC compliant (2014/30/EU). RoHS 2011/65/EU.
User experience Deep dimming from 100% down to 0% (true dimming mode, not simple PWM) for smooth intensity changes. Fade in / fade out effect on turn ON/OFF to soften light changes. Overheating protection: device is designed to never overheat and includes a protection that turns the system off in case of overheating.
Form factor & mechanical Reduced encumbrance: total height only 44.4 mm allowing installation where spaces are limited. Projector dimensions: Diameter 50 mm x thickness 44,4 mm. Super lightweight due to use of plastics in screen and heatsink, contributing to overall weight reduction.
Applications IP68 waterproof rating enables installation in internal rooms and external corridors; ideal for marine environments and where waterproof recessed lighting is required.

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Denomination commerciale: SMARTSPOT 50 ON-OFF
• Luminous intensity: 400 lm (WHITE)
• Output power: 4,8 W
• Power supply: 24 Vdc
• Absorption: Max 0,20 A @ 24 Vdc
• Light colour: White 3.000 K (OSRAM LED) — other white temperatures available on request
• LED: 8 OSRAM LEDs
• Driver type: internal
• Dimmable: Yes, true deep dimming mode (100% → 0%)
• Operating modes: ON/OFF and dimming
• Fade in / Fade out effect: Yes
• Protections: polarity reverse, overheating protection, short circuits, electrostatic charges, voltage peaks
• Resistance to voltage peaks: up to 60 Vdc (device automatically shuts down between 32 Vdc and 60 Vdc to prevent damages)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Waterproof: IP68
• Projector dimensions: Ø 50 mm x thickness 44,4 mm
• System typology: Standard
• Compliances: RoHS 2011/65/EU; Electromagnetic compatibility 2014/30/EU
