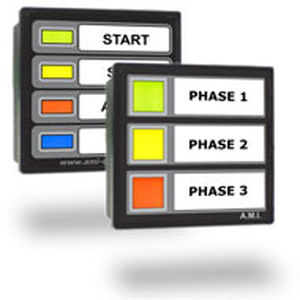

Ship indicator panel PAN35-05-13
systemLED

ship indicator panel
ship indicator panel
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
system
Other characteristics
LED

Description

The PAN35-05-13 is a triled multi-voltage that allows you to display the presence of the 3 phases with the presence of the Neutral. There are several versions of this model : – The standard version with a working range of 15 to 265Vac (Ph/N) / 300Vdc. – The T version lights the LEDs only after a certain voltage, thus avoiding the display of leakage voltage or induction in the cables. – The B Version enhances safety by lighting the indicator by flashing when a voltage is dangerous. The flashing of the indicator accelerates to its reference voltage, then the indicator goes fixed. This version makes it possible to display that a tension is present even if it is not the good one, but it is an ideal version to do the control of battery for example. Equipped with 3 indicators LED “high luminosity”, 7 choice of color display, selectable by switch, of its connector screwless removable, its lamp test outside, it IP65, it is very easy to install and will save to you an precious time. The PAN35-05-13 is even more Economical because with its wide voltage range it allows to have only one order reference to manage.. Supply : PAN35-05-13 : 15-265Vac / 15-300Vdc. PAN35-05-13T1 : 125-265Vac / 170-300Vdc. PAN35-05-13T2 : 63-265Vac / 86-300Vdc. PAN35-05-13T3 : 35-265Vac / 44-300Vdc. PAN35-05-13B1 : 125-265Vac / 170-300Vdc. PAN35-05-13B2 : 63-265Vac / 86-300Vdc. PAN35-05-13B3 : 35-265Vac / 44-300Vdc.

Catalogs
