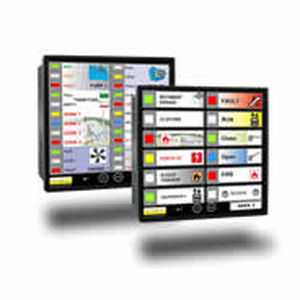

Ship indicator panel J2005RS - J2405RS

for yachtsalarmsystem

J2005RS – J2405RS – DIN Format 144×144. The RS485 and RS422 BUS versions : Indicator panel with 12 or 24 Multicolor leds, without contact inputs but at the input by BUS RS422 / RS485. Allows to transmit locally by bus a great number of indications or the alarms managed by an automat. – Very economic, the Bus connection uses only 2 or 4 wire and only one output “automat” standard RS422/RS485. – 64 panels possible of 24 ways on 1Km with 2 or 4 wire only, fiber optic link possible. The panels integrate : – 12 or 24 multicolored LEDs “high brightness”, color possible: White, Green, Yellow, Red, Blue, Magenta, Cyan. – 4 types of blinking. – 1 output with relay “audible alarm” and 1 output relay “watchdog”. – 1 buzzer integrated (option). – Recovery by bus of “acknowledge operator”. Communication : Protocol RS422, RS485, Modbus RTU, Jbus.
