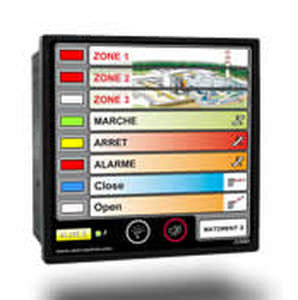

J1905S – DIN Format 96×96
Treatment panel of alarms sequence to 8 multicolored leds high luminosity.
7 choice of color display, selectable from the front by switch.
They consume just 10mA by seeing a decrease of 50% compared to
J1900 and is identical in appearance and mechanics.
The J1905S can receive a redundant power supply.
Principal use : TERTIARY SECTOR, MARINE.
Selections ways by ways :
– 8 entries “contacts” normaly open or normaly close.
– 8 entries positives or negatives..
– 8 outputs “open collector”, possible outputs “contact” by relay card.
– 8 leds 5x10mm multicolored leds high luminosity, color possible: White, Green, Yellow, Red, Blue, Magenta, Cyan.
– fixed indicator or blinking (with sequence of alarm).
– possible Blocking of the input by ways.
– Temporization of each input.
– Relay “general alarm” possible select.
For installations comprising several J1905S panels, defer to the ALARM’ BOX.
Possible supply :
J1905S-02-00 : 15 to 60Vac/dc
J1905S-05-00 : 80 to 265Vac/dc (with galvanic insulation)
J1905S-02-05 : 15 to 60Vac/dc and 80 to 265Vac/dc
J1905S-05-05 : 80 to 265Vac/dc and 80 to 265Vac/dc
