work boat / inboard waterjet / diesel / aluminum

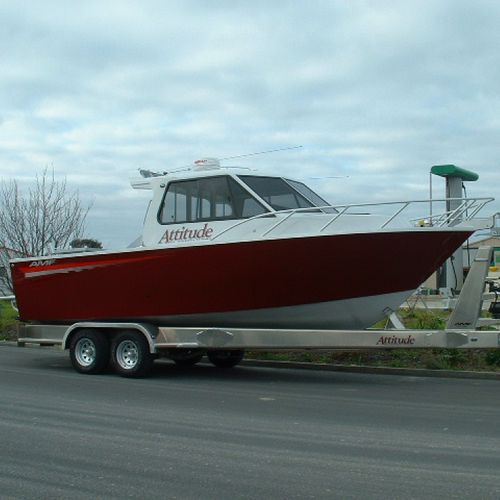

Commercial 820



  • Type:

    work boat

  • Motor type:

    inboard waterjet, diesel

  • Other characteristics:


  • Length:

    8.2 m (26'10")


The AMF 820 Commercial was originally designed for load carrying, hence the wide beam to length ratio. The hull shape is also well suited to jet application if necessary.

The wheelhouse is kept well frd to allow for maximum deck space usage.

A small boat with huge capacity! Large deck space makes the AMF Commercial 820 an ideal first commercial boat for someone after their first vessel, weather it be for wet fish or charter fishing.


AMF Commercial 820 hull, 8.2M x 2.8M, 8mm bottom, 5mm sides, hard top with 6mm clear Armour glass windows to front, side windows 6mm clear Armourglass. Fuel tank, approx 550 Litres, with breather & deck mounted filler. Single helm console. Side pockets. Anchor bin, open top with tube edging & drain holes. Bow & grab rails.

To supply & fit Yamaha 270Hp diesel engine & stern leg including standard accessories. Alloy propellor set fitted. Side mount controls. Insulation to engine bay area. Fuel system with fuel filter/water separator, fire proof hosing & hydraulic type fittings.

Hydraulic steering with S/S wheel

Navigation lights x 3. 2 x Interior lights. Batteries, 2 x marine type. Clamping system for batteries. Battery switch bank with volt sensing relay for charging. Switch panel, 8 way splash proof. All cabling from double insulated tinned copper.

Helm seat to have Softrider pedastal with plastic Raeline seat with upholstery pads.
