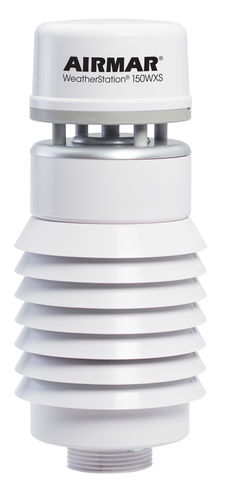

NMEA 2000® weather station 150WXS WeatherStation®
ultrasonicNMEA 0183®RS422

NMEA 2000® weather station
NMEA 2000® weather station
Add to favorites
Compare this product


NMEA 0183®, RS232, RS422, ultrasonic, NMEA 2000®


Airmar’s WeatherStation 150WXS provides accurate, site-specific, weather data from a single compact device. It measures seven critical weather parameters in real-time. The compact housing features ultrasonic wind and barometric pressure measurements. Plus the solar radiation shield increases the accuracy and stability of temperature and relative humidity readings. The maintenance-free features of the 150WXS makes it perfect for remote mounting as a network of stationary sensors—an integral component of a comprehensive weather station. Features: Ultrasonic measurement of apparent wind speed and direction Barometric pressure, air temperature, and relative humidity readings with calculated dew point, heat index, and wind chill Internal compass for wind speed data referenced to magnetic north GPS for time stamping and correcting for the variation between magnetic and true north Rugged, compact, UV stabilized housing with no moving parts Specifications: Weight: 325 g (0.71 lb.) Wind Speed: - Range: 0 to 40 m/s - Accuracy: 5% at 10 m/s at 4 angles - Resolution: 0.1 m/s - Calculations: User configurable damping Wind Direction: - Range: 0 to 359.9° - Accuracy: ±3° at 10 m/s - Resolution: 0.1° - Calculations: User configurable damping Air Temperature: - Range: -40 to 80°C (-40 to 176°F) - Accuracy: ±0.3°C at 20°C - Resolution: 0.1°C Relative Humidity: - Range: 0 to 100% RH - Accuracy: ±3% RH at 0 to 90% RH at 20°C - Resolution: 0.1% RH Barometric Pressure: - Range: 300 to 1100 hPa - Accuracy: ±0.5 hPa at 25°C (or better) - Resolution: 0.1 hPa Two-axis Compass: - Range: 0 to 359.9° - Accuracy: 1° RMS when level - Resolution: 0.1°


WXS Series
WXS Series
2 Pages
