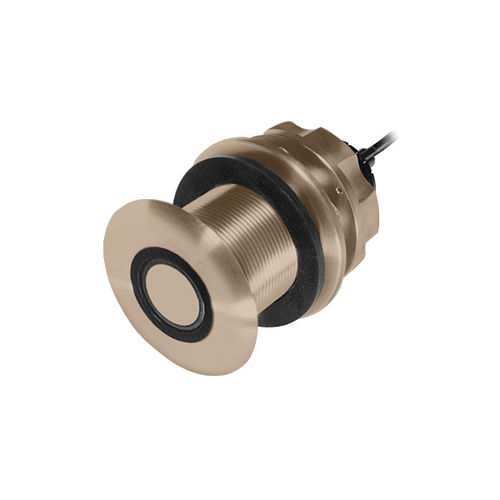

Water temperature sensor B17-HP
for boatthrough-hull

water temperature sensor
water temperature sensor
water temperature sensor
water temperature sensor
Add to favorites
Compare this product


Measured value
water temperature
Application domain
for boat
Other characteristics


The B17-HP, high-precision temperature sensor responds quickly and accurately to temperature changes. The 25 mm (1") bronze button on the sensor’s face along with the specialized fast-response thermistor provide a five-second time constant and ±0.3ºC (±0.17ºF) accuracy. This Smart™ Sensor can output precision-temperature data to a fishfinder, chart plotter, digital display, or computer. The top-of-the-line B17-HP is ideal for commercial and sport-fishing applications, helping skippers detect thermal boundaries and eddies which attract bait concentrations and game fish. Features High-precision water-temperature sensing Retractable insert in a bronze housing with a water valve Nearly flush, low-profile housing minimizes drag with only 5 mm (3/16") extending outside the hull Temperature insert easily fits into an existing Airmar housing NMEA 0183 and NMEA 2000® versions available Airmar’s Smart™ Sensor technology Specifications Weight: 1.3 kg (2.8 lb.) Hull Material: Fiberglass or wood Hole Diameter: 51 mm or 2" Water Temperature: Range: 0 to 30°C (32 to 86°F) Accuracy: ±0.3°C (±0.17°F) Resolution: 0.01°C (0.2°F) Data: Update Rate: 1 time/s Output Protocol: NMEA 0183 or NMEA 2000 NMEA Data Sentence: YXMTW, PGN130310 Power: Supply Voltage: 6 to 28 VDC Supply Current: <30 mA Cable Length: Maximum extension cable of 100 m (330') Includes: Blanking plug
