24V marine battery / lithium / ion
A24020R

{{requestButtons}}

Characteristics

  • Voltage:

    24V

  • Storage system:

    lithium, ion

Description

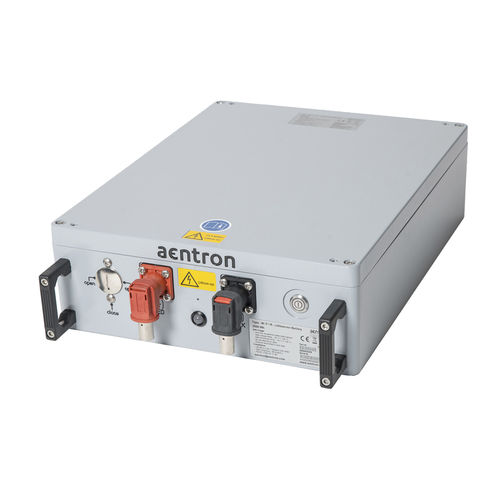

Mobile Lithium Ion Boat Battery A24020R
24 V DC – 2046 Wh – 81,2 Ah – Imax: RELAY 200 A
Integrated Battery Management System Modular scalable, safe, turn-key ready, Galvanic Isolated, IP66, CE, RoHS, IEC 61508 (SIL2)

KEY FUNCTIONS & FEATURES:

Lithium-ion battery Technology (Li-NMC Panasonic)
Fast charge capable >70 % SoC in 60 mins
System Solutions: < 60 V DC with capacity up to 8 kWh (1S4P)
Scalable Modular-System
High energy and power density
Ready-to-Install / Plug-and-Play
Innovative cooling concept
Operational Temperature: -20 °C to + 60 °C
Stand-Alone-capable
Galvanic isolated
Intrinsic safety / system isolation (electrical disconnection during transport)
Compact and robust design – Aluminium Die Cast Housing
Dust and Watertight: IP66
Communication: E-Switch (optional CANBus at R-Type)
Integrated Battery Management System:
Voltage, Current, and Temperature management
SOC – State-of-Charge with LED
Service free operation: Installation, Service and Disposal
Compliance: UN 38.3, CE, RoHS, IEC 61508 SIL2
Made in Germany
