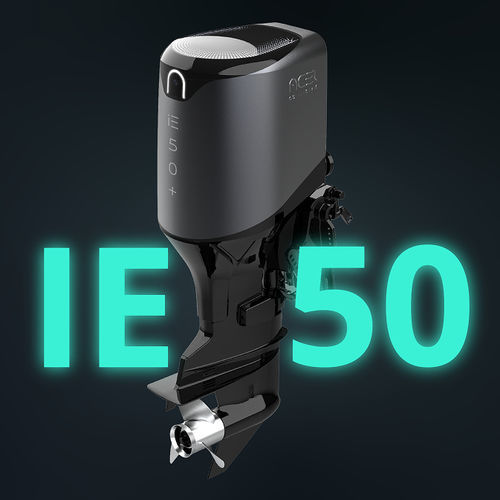

Outboard engine IE 50

electricboatingwater-cooled

Choosing electric doesn’t mean compromising on performance. The ACEL IE 50 comes with a 32KWH battery pack, boasting a 95.8% total powertrain efficiency, and weighing less than traditional motors. The high-horsepower, 400V system is a technological breakthrough, offering plug-and-play installation and requiring minimal maintenance. - Product Highlights: - Peak Power: 75 HP - Motor Weight: 127 kg / 280 lb - Tilt: Power - Shaft Length: 50.8 cm / 20 inch (Available in extended lengths) - Motor Type: Axial Flux - LFP Battery: - Battery Pack: 2 Modules - Battery Type: LFP (Lithium Iron Phosphate) - Voltage: 400V - Total Battery Capacity: 32 kWh - Battery Dimension/ module: 40.6 x 23.2 x 7.5 inch/ module - Total Battery Weight: 473 lb - Custom size availability: Yes - Semi-Solid State Battery: - Battery Type: Semi-Solid State - Rated Voltage: 360V - Rated Capacity: 76Ah - Total Energy/ module: 27.36 kWh - Battery Dimensions/ module: 41.7 × 25.6 × 6.3 inch/ module - Battery Weight/ module: 137 kg/ 301 lb - Onboard Computer: - Display: 10.1’’-10.5’’ (25.65 cm to 26.67 cm) Touch Screen, 1920×1080 pixels, WVGA Color/IPS - Waterproof: IP67 - Mounting Options: Flush, Tilt/Swivel - Connections: All-in-one cable (CAN, 3.5mm Aux) / Wi-Fi - Power Input: 12.3 Vdc - Typical Current Draw: 0.75 A - Max Current Draw: 1.5 A - Smart Charger: - Size option available: 15A/30A/50A Max 6.6kw; DC fast charge (1 hour) - IP67 Portable Charger System - Smart Key: - NFC enabled - Designed to float - Onboarding Computer integration - Sleek Design - IP67 Rating - Digital Throttle: - Digital Throttle (single / twin) - NFC tap activation - Able to control the entire system - LED Lighting for visibility - Durable and waterproof - Emergency (STOP) - Emergency Power Control to override the system - Intelligent Power Supply: - Dimension: 20.80 in x 14.17 in x 6.06 in - Specification: 12V, 1000w Power supply - Warranty: - 5 years: Battery (500 cycles or 5 years, whichever is earlier), Battery Control Module - 3 years: Motor, All component in the Gear Box, Gears, Shaft, Inverter, Intelligent Power Supply, Motor Logic Controller, Hybrid Controller, Propeller, Relay, Pump, Hydraulic Tilt - 1 year: Electronic Package: Onboard Computer, Screen, Digital Throttle, Smart Charger, Smart Key - Frequently Asked Questions: - How far can I travel on a full charge for 50HP model? Typically, travel range is quantified in distance, not time. The 50HP (32 kWh) battery pack offers a range of about 45 mins to an hour at full throttle. In electric, the slower you go, the longer the time you can spend on water. - How long does it take to charge? Charging time varies based on the power source which can range from 4 hours to 18 hours. Using a 6.6kW charger, a full charge typically takes 5–6 hours. - What kind of boats is it best suited for? The IE 50HP is ideal for small to mid-size boats ranging from 13 ft to 20 ft such as tenders, pontoons, and skiffs, offering smooth, quiet performance. - Is the system waterproof? Yes, the motor and components are rated IP67, offering protection from water and dust—perfect for marine environments. - How efficient is the power system? With a 95.8% powertrain efficiency, it minimizes energy loss and extends battery life, outperforming most traditional systems. - Is the IE 50 available for purchase now? Yes, the IE 50 is currently available on the market and can be ordered for immediate delivery.
