Harbor service boat 420

aluminumBureau Veritas

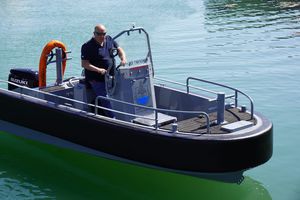

The Pilot420 is a 3D Tender harbor service boat, designed by our architect Samy Boubezari. The Pilot420 is the specialist in harbour manoeuvring assistance for boats of all sizes. Its compact design and shallow draft allow it to maneuver in the most difficult to access areas. The boat is extremely robust with its 5mm thick H5083 aluminum hull and dense 3mm internal structure. the 20 cm PU reinforcement all around the hull provides maximum protection in case of contact, without marking the boats. The structural plans have been validated by the classification society Bureau Veritas. It has a rounded bow, called "marotte", which allows it to perform its function as a pusher boat. The flat bottom, the good width/length ratio and the design of the hull, give it excellent stability and maneuverability at sea. The Pilot 420 is equipped with two towing mats, one forward and one aft directly linked to the structure of the boat. It is also equipped with a steering console, a comfortable bolster seat with double storage, four mooring cleats (two forward and two aft), an anti-slip EVA coating, two large front lockers, a 60L tank, a large work platform at the bow of the boat and an anchor locker. In order to secure the boat, handrails are present all around the Pilot 420. This boat is self-draining. On request, the shell of the Pilot 420 can be declined in other colors, and the fenders in white.
