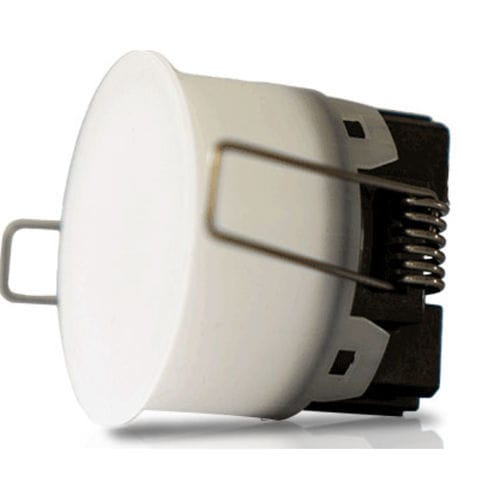

屋外照明用スポットライト SMARTSPOT 50 ON-OFF

屋内照明用ボート用照明

Overview
The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart. The product delivers a homogeneous illuminated surface while hiding internal components when turned off for an elegant appearance.

Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame is customizable and has to be ordered separately if required.

Homogeneous light surface
The use of a technological plastic material for the lens delivers an incredibly homogeneous enlightened surface; when the downlight is turned off it completely hides all the internal components.

Powerful light
The light is emitted by 8 OSRAM LEDs arranged following a luminous flux study to obtain optimal results. Standard white temperature is 3.000K but can be customized on request.

No galvanic currents / corrosion
The total plastic body eliminates the risk of galvanic currents generation and potential corrosion, making the downlight safe for marine environments and keeping it looking as new.

Fade effect
Turning ON and OFF phases occur with a smooth fade in / fade out effect to soften light change and keep eyes relaxed.

Electronics & resistance
Automotive-certified electronic components provide resistance to battery voltage peaks. The device features an automatic shut-off system to prevent damage in case of overvoltages and is resistant up to 60 Vdc (device automatically shuts down from 32Vdc up to 60Vdc to prevent damage). Electronics are 60Vdc resistant.

Reduced encumbrance & dimensions
Compact design with total height of just 44,4 mm allows installation where spaces are limited. Projector dimensions: Diameter 50 mm x thickness 44,4 mm.

Lightweight construction
The use of plastics in the screen and heatsink makes SMARTSPOT downlights very light, contributing to overall weight reduction and limiting impact on ceilings.

Operating modes, dimming & protections
Operating modes: ON/OFF and dimming. The product supports true deep dimming from 100% down to 0% (not a simple PWM effect) providing a soft intensity change. Overheating protection: designed to never overheat, with an automatic protection that turns the system off in case of overheating. Protections include polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks. Contains automotive qualified electronic components.

Waterproof & environment
IP68 rated: suitable for internal rooms and external corridors, allowing installation in various marine locations.

Light colour
Standard configuration: White 3.000K (OSRAM LEDs). Other white temperatures available on request.

Downloadable document
EU Declaration of Conformity available for this product.

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Luminous intensity: 400 lm (WHITE)
• Output power: 4,8 W
• Power supply: 24 Vdc (suitable for 24Vdc systems; can be used on 230Vac with additional PSU)
• Absorption: Max 0,20 A @ 24 Vdc
• Light colour: White 3.000 K (OSRAM LED) — other white temperatures available on request
• LED: 8 OSRAM LEDs
• Driver type: internal
• Dimmable: Yes, true deep dimming (100% to 0%)
• Fade in / Fade out effect: Yes
• System typology: Standard
• Operating modes: ON/OFF and dimming
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks (contains automotive qualified electronic components)
• Resistance to voltage peaks: device automatically shuts down between 32 Vdc and 60 Vdc to prevent damages (max 60 Vdc)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Waterproof: IP68
• Projector dimensions: Diameter 50 mm x thickness 44,4 mm
• Body: total plastic body to avoid galvanic currents and corrosion
• Overheating protection: automatic shut-off in case of overheating
• Compliances: RoHS 2011/65/EU; Electromagnetic compatibility (EMC) 2014/30/EU
