Tracks, Cars

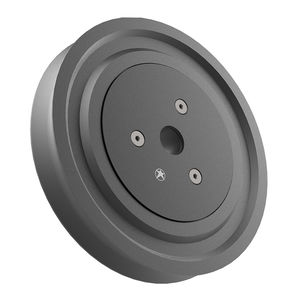

ø SHEAVE: 125mm MAX ø LINE: 18mm MAX WORKING LOAD: 6000Kg BREAKING LOAD: 12000Kg HEIGHT: 22mm WEIGHT: 487g

Self-contained sheaves are designed for sailors to use in custom applications. 2760 sheaves are Delrin® acetal resin with Delrin® ball bearings. They are scored for rope. Delrin® is a registered trademark of E. I. du Pont de Nemours and ...

Car bodies are machined to precise specifications, then honed to an exceptional finish before being treated and anodised for maximum corrosion protection. Minimum distance from mast to mainsail luff enhance efficiencyN.B. - Ball Bearing ...

Made of heavy anodized light alloy with PTFE ball bearing, assure excellent swivelling movement even under high loads; fitted with two 5 MA threaded holes. Suitable for travellers 62.940.08.

> S/stell sheave boxes > cover plates for news sheave boxes > Sheaves (part)

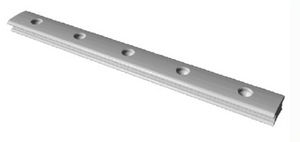

Track Size 1" x 1/8" (25 mm x 3 mm), Boat Size Up To LOA, Displ., Sail Area 27', 5000 lbs., 315 sq. ft (8 m, 2270 kg, 29 m2), L 3" (76 mm), W 1-3/8" (35 mm), H 1-3/32" (28 mm), Eye 9/16" (14 mm), Eye 9/16" (14 mm), SWL 750 lbs. (340 kg), ...

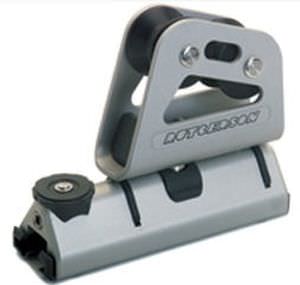

Hard black anodized aluminum slider with low friction Nylon sliding inserts. The revolving upper structure (± 50°) is made of AISI 316 S.Steel. The resin sheave is fitted with 2 side ball bearing. AISI 316 S.Steel pin with a lock-up position. ...

ERGO DESIGN Low profile aluminium traveller cars are CNC'd from solid marine grade aluminium and hard anodised.

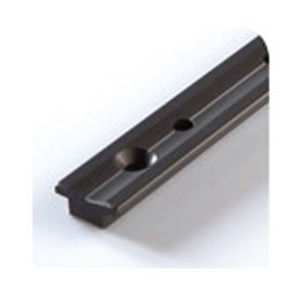

Profile track with 5 m length. Material strength 1,5 mm.Profile track with 5 m length. Material strength 1,5 mm.

The Allen self tacking system is the strongest available on the market. Carefully designed, the CNC turned adjustable aluminium legs allow the geometry to work on the curved beam track at any angle, whilst the A4489F traveller car has ...

Spare Acetal sheave plain bearing dia 17mm width 6mm bore 6mm

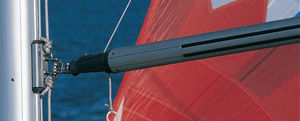

The ring and body of this unusually strong car is investment cast of 17-4 heat treated stainless steel to provide a superior product. Compatible with our "UXP" and "UTR" pole end fittings. Ring I.D. is 1.625". The RC-125 is for 1.250" ...

Complementing Barton's successful larger traveller range, the Dinghy traveller System uses proven recirculating Delrin ball technology and features a 16mm wide track. With holding power of up to 130Kgs. The optional attachment eye ...

* Our 42 mm travellers cover systems for mainsheet, genoa and spinnaker poles. * They are available with slide rods or with recirculating balls for smooth running under heavy loads. * The range includes travellers with breaking loads ...

- Admiral Cars and Tracks are made of anodized aluminum. - The sheave supports are AISI CrNi quality stainless steel. - It is a track system with balls.

The system consists of a one-piece UHMW track and an “owner-defined” selection of matching slides and batten receptacles designed for smooth, long-lasting operation. The system is priced at $28.25 per foot of track ordered ...

Used for the the deflection of of sheets and control lines, our stacked sheaves can be found in steering systems, below deck sheet leads and pit area.

There are 2 sizes of Furlerboom mast track, each with headboard cars available being able to suit any demand. This enables us to deliver a safe and reliable mast track system from the smaller to heavy displacement yachts and large multihull. The ...

» Aluminum material with high strength, delicacy appearance, longer block life » Preservative treatment Composite bearing side bail bearing

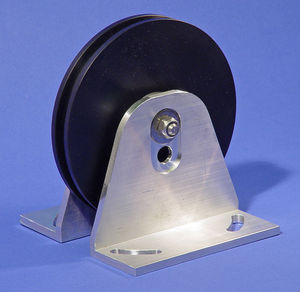

Edson’s Sheaves may be the answer in many areas of custom boat building, not only for steering but also for centerboards, custom deck hardware, or remote actuators, such as emergency shut off valves and CO2 systems. Great care should ...

A double acting hydraulic cylinder with twin rods fitted on a frame, has a complete self contained 2:1 purchase system for traveller cars. The body of the cylinder with integrated purchase sheaves moves while the rods, dead end of lines ...
