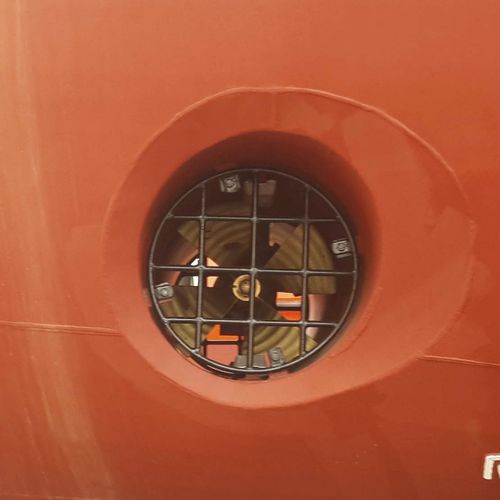

Bow thruster BWT/Esterntunnel typefor yachts
Add to favorites
Compare this product
Characteristics
- Type
- bow, stern
- Assembly
- tunnel type
- Application domain
- professional vessel, for ships, for barges, for yachts, for tugboats
- Power source
- electric
- Power
Max.: 500 kW
(679.8 hp)Min.: 22 kW
(29.9 hp)- Thrust
Max.: 63 kN
Min.: 2 kN
- Thruster diameter
400 mm, 1,400 mm
(16 in, 55 in)- Tunnel length
1,000 mm, 1,500 mm, 2,000 mm
(39 in, 59 in, 79 in)
Description
YMV manufactures tailor made bow thruster, stern thruster for ships, tugboats and megayachts. YMV Tunnel thrusters support the mooring or harbour operations and extends maneuvering ability. When applied in Dynamic Positioning systems, extends the Dynamic Positioning capability of offshore supply vessels.
Main properties: -Tunnel thrusters with fixed pitch propeller available for bow or stern applications. -Electrical or hydraulically driven bow thrusters -Maximum power (kW): 22 to 500 -Propeller diameter (mm): 400 to 1400 -Nominal input speed (rpm): 750 to 1800 -Propeller material: Bronze
Product package includes: -Tunnel of the thruster -Electric or hydraulic motor -Main panel with frequency converter with preprogrammed factory settings -Wheelhouse control panel and optional auxiliary panels
