Wastewater treatment system / shipyard / with filter
Yachtgarage

Characteristics

  • Use:

    wastewater

  • Application domain:

    shipyard

  • Other characteristics:

    with filter

Description

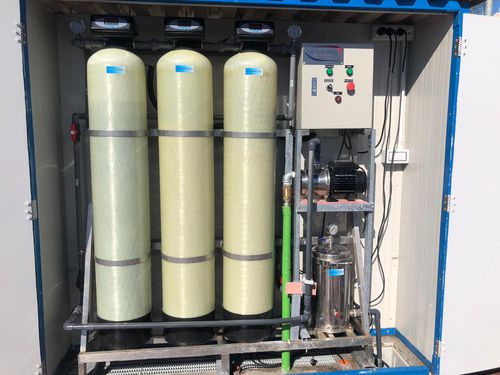

The WT000 is the entry level product in the full range of products by Shipyard Solution. This product adopts only the MECHANICAL process using two quarts sand media filter and one activated carbon media filter. The flow rate is 0,5 m³/h and the system is fully manual. The pressure inside the filter is controlled by tree digital pressure meter and the high pressure pump is made in SS steel. This product is dedicated to very small shipyards using the water treatment only for hulls wash of small boats and without the use of acids for propeller cleaning. The system must be connected to a collecting tank with sedimentator and an oil separator. Every 5 m³ of waste water it will be necessary to make a back wash of the filters and collect the mud. The mud can be dried with the model MU000 220v 50 hz.
https://www.youtube.com/channel/UCVgyb23yzLKU_v2fc7EYNcA

{{requestButtons}}
