Boat repair shelter
Shelter Series Yachtgarage

Description

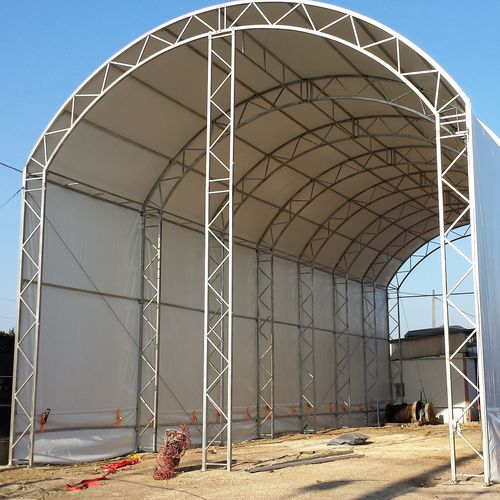

The SHELTER series shelters are made with frame in S355JR steel with hot galvanized finishing and fire retardant PVC. It will be possible to use different kinds of pipes depending on the size of the shelter. Main profile are 42x42x2mm : 50x50x2,5 mm : 60x60x3mm and 80x80x4mm or bigger. The PVC is 950 gr/m2 for each bay distance. Each PVC section will cover one bay distance from one side to the other side including the roof. This shelters can be assembled on concrete industrial flooring using steel plates with four expansion screws. With this technology is possible to have good span width (up to 35 meters) and good heights (up to 18 meters).

There are no limits in length as this system is modular thanks to the 3 meters bay distance. The PVC is assembled to the steel structure via a small aluminum profile with the same function of the ALU series. The SHELTER series shelters are considered TEMPORARY STRUCURES. The SHELTER series has fire retardant certification for the PVC and wind and snow load certification as per European standards.

video: https://www.youtube.com/channel/UCVgyb23yzLKU_v2fc7EYNcA
