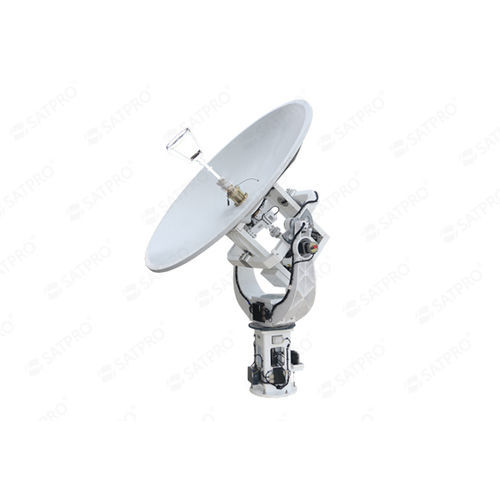

VSAT antenna IP180-1.8mGPSC-bandGNSS
Add to favorites
Compare this product
Characteristics
- Network
- VSAT, GPS, C-band, GNSS
- Application domain
- for ships
- Type
- parabolic
- Frequency range
Min.: 10.7 GHz
Max.: 14.5 GHz
- Gain
Min.: 44.8 dB
Max.: 46 dB
- Electrical power
250 W
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)- Azimuth
360 °
- Elevation
Min.: -5 °
Max.: 120 °
- Diameter
2,800 mm
(110 in)- Height
2,820 mm
(111 in)- Weight
350 kg
(772 lb)
Description
IP-Series is designed for civil and commercial market, oversize market share, superior performance.
Features
1)High precision GNSS/INS integrated attitude azimuth measurement
2)Side rotating and cone scan peak tracking
3)Narrowband satellite beacon identification
4)Attitude and GPS data realtime output
5)High gain horn array panel antenna
6)Seamless auto satellite beam switching across the sea area
7)Antenna remote monitoring technology
8)Hightransparent antenna radome
Applicaiton
Container vessel, dry bulk vessel, cruise ships, LPG/LNG, chemical vessel, multi-purpose ship, roll-on ship, oil tanker, Marine engineering vessel.
