intervention underwater ROV / observation
Pro 5 VideoRay

{{requestButtons}}

Characteristics

  • Type:

    intervention, observation

  • Depth:

    305 m (1000'07")

Description

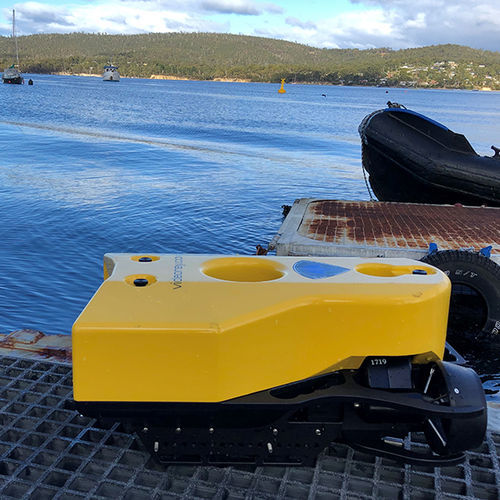

The VideoRay Mission Specialist Series (MSS) Pro 5 configuration is designed for speed and efficiency, weighing in at 10kg (22lb). The three-thruster system has forward speed of over 4.4 knots, and utilizes a system of interchangeable, modular components residing on a single, intelligent network. The Pro 5 is designed to handle missions with size, space, weight, and deployment speed constraints, such as infrastructure inspections beyond the reach of divers, search & recovery, exploring the ocean floor up to 305m, and various others. The Pro 5 builds on the strengths of the Pro 4, with more thrust, longer tether lengths, higher resolution video, and the advantages of the MSS modular systems.

SYSTEM INFORMATION

Power Requirements110/220VAC (1 to 2.6kW)
Depth RatingUp to 305m (1,000ft)
Submersible Weight in Air10kg (22lbs)
Total System Weight (sub and panel)34.8kg (76.9lbs)
Communications ProtocolRS-485 and Ethernet
Speed>4.4 knots (forward)
Cases2-3 Watertight Rugged Hard Cases
Owner's ManualOnline Digital
System Tool KitIncluded
Warranty2 Year Comprehensive
