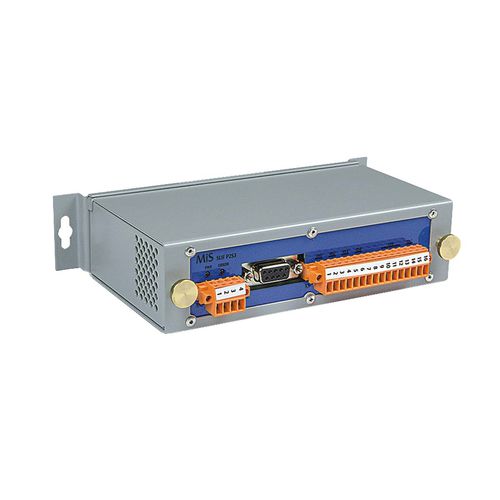

Interface for ships (speed log, NMEA) SLIF P2S3

Type examination certificate no. BSH 46162/0041053/09 The SLIF P2S3 interface is used to convert pulses (200 or 400 pulses per mile) into NMEA messages and vice-versa. The module has two RS422 outputs and RS422 input. A RS232 output is for monitoring the RS422 output. Main Features power-supply - 9-32VDC / nom. 24V; 1,5W dimensions - 176mm x 104mm x 41mm weight - 470g data-rates - 2Digital-In: Pulse (5 up to 50VDC/dry contact) 2Digital-Out: Pulse (24V with Rv=2k4/dry contact) NMEA-In/Out, NMEA-Out according to IEC61162-1 applications - Conversion of pulses into NMEA messages and vice-versa approval - IEC60945, BSH DNV GL No. 5485208 HH
