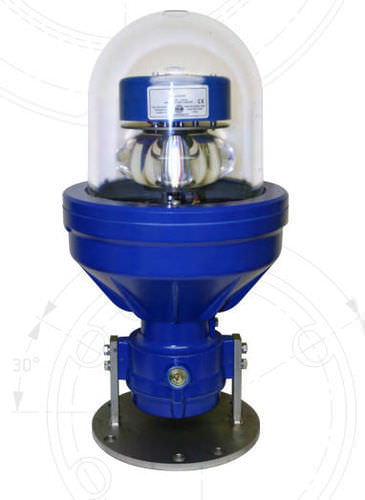

Ship signalling light MLED-150Ex
LEDwhitered

ship signalling light
ship signalling light
ship signalling light
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Light source
LED
Color
white, red, green, yellow, blue
Material
aluminum
Housing color
blue
Protection level
IP66
Visibility arc

360 °

Power consumption

20 W

Service temperature

Max.: 60 °C
(140 °F)

Min.: -35 °C
(-31 °F)

Weight

15 kg
(33.1 lb)

Description

MLED-150Ex brings the benefits of LED technology, low power, high reliability and low maintenance, to the Zone 1 environment. The flasher and optical source assembly, designated MaxiHALO-150, is designed after the proven MaxiHALO-60. The MaxiHALO-150 is installed in a rugged Ex-d well glass housing used in the rigors of offshore atmospheres. The MLED-150Ex is compatible with current Tideland Signal lanterns and is configurable as a Secondary (Standby) light. When used in a main and secondary pair installation, the Secondary light monitors the Main light and, upon failure, automatically begins operation. Onboard software constantly monitors operation of the MLED-150Ex and initiates an alarm signal if critical operation parameters are exceeded. The MLED-150Ex produces an omnidirectional beam >10NM visual range with T = 0.74 (16NM with T = 0.85). CHARACTERISTICS User selectable power settings 5-100% 256 user selectable flash characters Temperature compensated LED-drive circuits ensure uniform brightness with changes in ambient temperature Full monitor and control capability Fail output terminal for go/no go monitoring Constant current power source maximizes LED-life Hard Wire Synchronization and Optional GPS synchronization module
