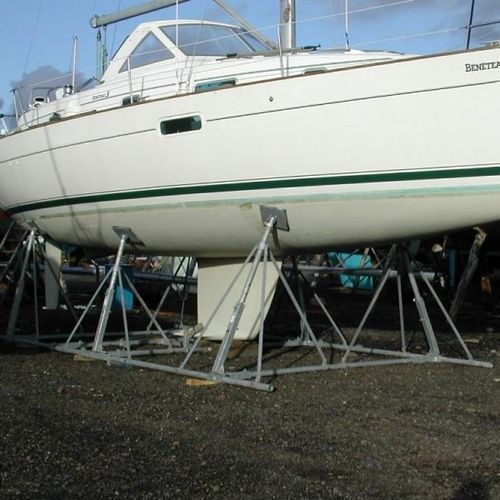

sailboat boat stand / fixed / galvanized steel
SUPER-A Tennamast

{{requestButtons}}

Characteristics

  • Application domain:

    for sailboats

  • Type:

    fixed

  • Other characteristics:

    galvanized steel

Description

Similar in application to the Craft-T-Cradle and Craft-E-Cradle, the Super-A-Cradle uses some parts which are common to the Craft-T-Cradle and achieves higher triangulation by using a modified approach and longer struts

Infinite angular adjustment of the support legs is possible.

The support units are fabricated from 70x70x3.6 mm square steel section and the angle struts are made from 40x8 mm flat steel. Large, heavy screw jacks carry the adequately sized carpeted hull pads.

This cradle is very easy to transport and can fit in the back of most estate cars with the rear seats folded down.

The joining tubes and extending legs are 60.3mm round steel.

The whole assembly is hot dip galvanised to ISO 1461.

We can supply this cradle in many different support configurations making it the ideal choice for those who need a cradle now but may want to upgrade to a bigger boat at a later date as it is very simple to extend the cradle.

This cradle can also be set up in different configurations to incorporate supports such as hull and stern supports.
