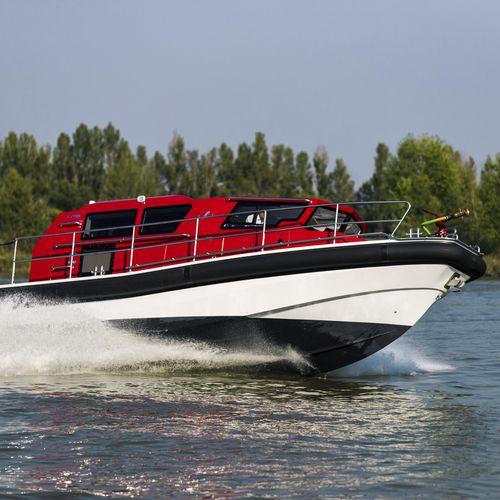

Multi-functional cabin boat for patrol, rescue and firefighting STEM 12 Fire Rescue
TECHNICAL SPECIFICATIONS
Design categoryB - (A)
Hull length11.99 m
Length overall12.65 m*
Width overall3.70 m
Empty displacement9800 kg*
Payload (people included)1800 kg
Fuel tank2 x 500 l Inox
STANDARD FEATURES
Hull and deck in GRP with vinylester resin and Kevlar layers, moulded with vacuum infusion system
Short or long cabin in GRP
D shaped fender made of energy absorbing polyethylene foam encapsulated within a resilient polyurethane elastomer
Custom configurations on demand
Cabinets and storage for equipment
Air conditioning for cabin
Self-draining deck
In-board Turbo Diesel engine– recommended power 2x450 hp (Max 2x600 hp) - with waterjet propulsion, suitable for emergency operations in shallow waters and high maneuverability in narrow spaces
Marine Diesel engines with sterndrive or IPS – recommended power 2x400 hp (Max 2x600 hp) for high performances
Outboard engines 3x300 hp
Hydraulic steering
Double bilever commands for engines and waterjets
Work bollard on the bow
4 Hoisting rings
6 Mooring cleats
2 Towing hooks at stern and 1 at bow
Stainless steel handrails on the perimeter
Mooring line with electric windlass
Navigations lights and mooring light
Blue flashing light
Siren and loudspeaker with sound selection (emergency, police…)
Stern platform in stainless steel equipped with a dive ladder also in stainless steel
