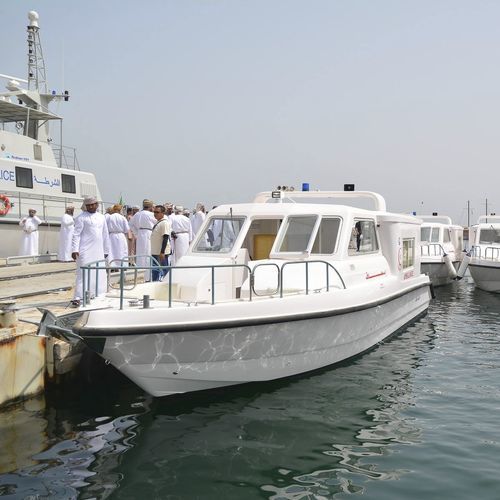

outboard ambulance boat
AMBULANCE 36 Smart Own

{{requestButtons}}

Characteristics

  • Motor type:

    outboard

  • Length:

    10.97

  • Passenger capacity:

    13

Description

Basic Dimensions
▫ Length : 36’
▫ Beam : 10’ 09”
▫ Draft : 1’ 08’’
▫ Weight : 5,500 Kg (approx.)
▫ Fuel capacity : 200 US Gal. aluminum fuel tank
▫ Water capacity : 40 US Gal. aluminum water tank
▫ Standard Engines : Yamaha Outboard GETX 2x250 HP
▫ Max speed : 40 knots
▫ Treatment beds : 1 or 2
▫ Passengers capacity : 13 (7 in cabin + 6 at bow)
▫ Safety regulations : US Coast Guard Standards “MIC-XVA”
Construction
▫ The hull and deck are made out of a single piece GRP mould, built from
combination of chopped strand mat, bi-directional knit fabric and balsa core handlaminated
under controlled temperatures with Isophthalic polyester resin.
▫ The hull and deck exterior have got mirror glaze gel-coat finish.
▫ The hull is stiffened with GRP molded frames filled with polyurethane and bonded
to hull bottom
▫ On the deck balsa is replaced with plywood to support deck fittings.
▫ All materials used in the construction are approved marine quality.
▫ Standard hull color : white the Abu Dhabi police.
