Colour fishfinder for boats

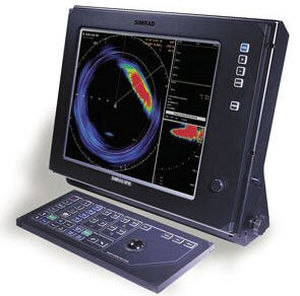

SX90
Simrad
The SX90 is a low frequency, high-definition; long range sonar using a high-end maritime computer to process data from the transducer. User selectable frequencies between 20 and 30 kHz provide longer range and prevent interference from other vessels.
With the large data capacity in the signal processor, there are several unique possibilities for beamforming. Three different vertical beamwidths, single or dual vertical view and 180° tiltable vertical views are available. At 30 kHz operating frequency, the vertical beamwidth is only 6,7 degrees.
It is designed for medium and large sized fishing vessels, preferably for purse seiners, but it is also well suitable for trawlers. The sonar allows you to choose an operational frequency between 20 to 30 kHz (in 1 kHz steps), and the beam can be electronically tilted from +10 to -60 degrees.
The Simrad SX90 sonar offers unique features such as full circle beam stabilization for easier fish detection in poor weather and 11 different sonar operating frequencies to avoid interference from other sonars. The long range and higher definition of the SX90 will improve your catching abilities and help to make better use of your time at sea.
