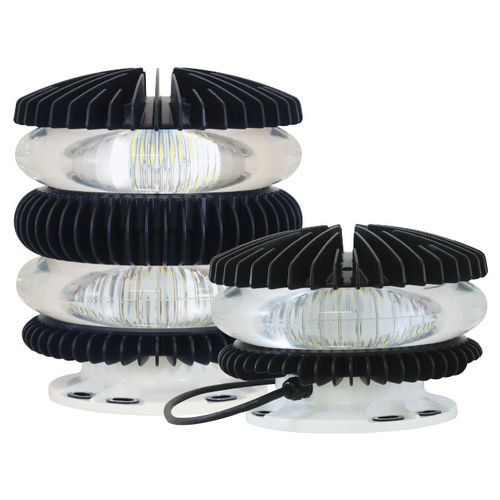

Beacon signalling light SL-300-2D5-1 / SL-300-2D5-2
LEDwhitefor lighthouses

beacon signalling light
beacon signalling light
beacon signalling light
beacon signalling light
beacon signalling light
beacon signalling light
Add to favorites
Compare this product


Characteristics

Application domain
for beacons
Light source
LED
Color
white
Applications
for lighthouses
Other characteristics
solar

Description

13-19NM Long Range Marine Lantern The SL-300-2D5 series are 13 to 19NM long-range marine lanterns with 2.5 degrees vertical distribution, suitable for a range of applications. The SL-300-2D5 series offers multiple intensity adjustments to over 46,000cd luminous intensity in a single tier and over 93,000cd in a two-tiered configuration. The small form factor provides minimal wind loading and convenient handling – delivering significant advantages over traditional large lens stack assemblies. Product Code: SL-300-2D5-1 & SL-300-2D5-2 FEATURES Over 46,000cd (single tier) or 96,000cd (two-tier) luminous intensity white Compact lantern from 13 up to 19NM visible range Multiple user-adjustable intensity settings 310 standard flash codes plus custom character PC or IR Programmer for setup, diagnostic & testing Internal or external photocell options User configurable day/night lux levels Advanced remote monitoring features Wide operating voltage range 20-58VDC Internal data-logging for long term retention of key operational parameters & alarm conditions Hardwire synchronisation supporting RS485 & RS422 General purpose inputs (two) & outputs (two) OPTIONS GPS synchronisation GSM monitoring & control Type 1 or Type 3 AIS Serial programming cable Variety of solar/battery configurations RS232/422/485 port Bird deterrent spikes
