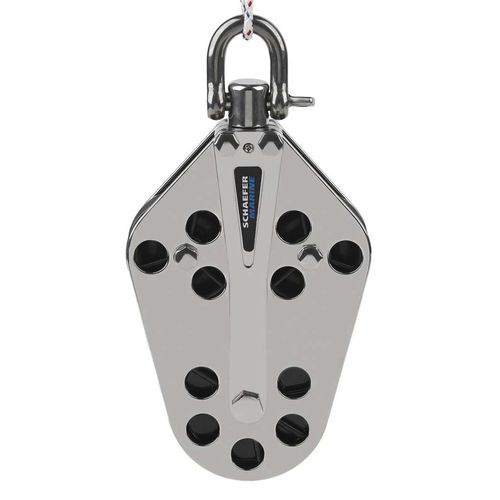

Single block 10-45
fiddlewith swivelmax. rope ø 16 mm

single block
single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
fiddle
Configuration
with swivel
Maximum line diameter
max. rope ø 16 mm
Application domain
for sailboats
Material
stainless steel
Working load

1,750 kg
(3,858.1 lb)

Description

10 Series Fiddle Block with Stainless Steel cheeks. Works with 10-55 for a 4:1 purchase. Delrin(tm) sheaves run on Nomex(tm)/Teflon(tm) bearings for low-friction and high safe working loads. Unique design features a single top sheave and two in-line sheaves to spread the load reducing friction and chafe. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Bolted construction allows for easy maintainence. Upper Sheave Dia. 3 1/4" (83mm), Lower sheaves dia. 2-3/8" (60mm), Thickness 1 7/32" (31mm), Width 4 13/16" (122mm), Length 9 1/4" (235mm), SWL 3750 lbs (1750kg), Weight 3lbs 1oz (1.39kg), Max Line 5/8" (16mm)
