Boat pump HP 09
steering systemoilhydraulic

boat pump
boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
boat
Applications
steering system
Fluid
oil
Operation
hydraulic
Pressure

60 bar
(870.2 psi)

Description

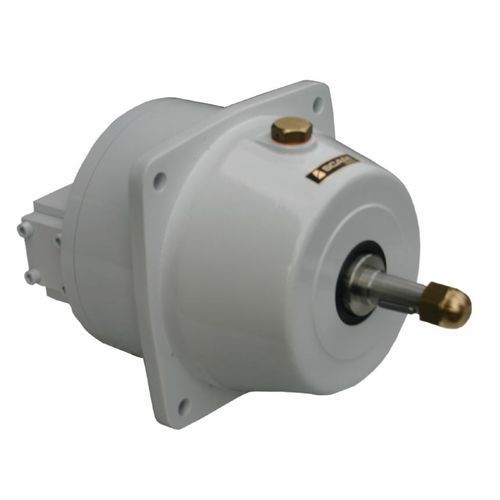

Number of pistons - 9 Capacity - 80 cm3/rev. Standard equipment Dual non-return valve No 12, taper key and decorative nut to fit the steering wheel, operation manual. The HP 09 pump is an axial piston pump with 9 pistons which satisfy greater oil supply for the corresponding cylinders. All parts are positioned in the aluminium housing which also serves as the hydraulic oil reservoir. We recommend SCAM HIDRAULIC FLUID or any the following hydraulic oils: - INA Hidraol 15 - Castrol HYSPIN AWH-15 - Shell Tellus T 15 - Mobil HSC 522 - BP Bartan HV 15 - Valvoline Ultramax HD15 and any other hydraulic oil having the same specification
