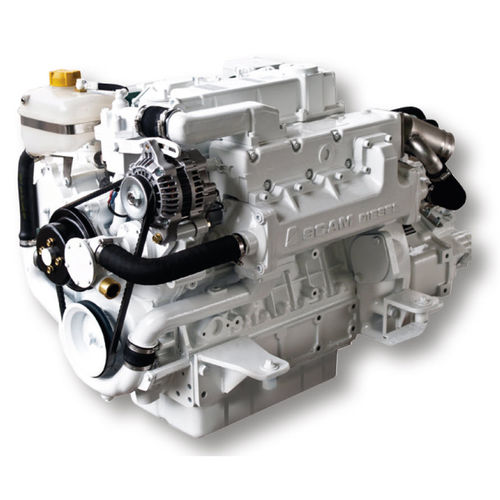

Inboard engine SD 467
dieselboatingatmospheric

inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating
Technology
atmospheric, mechanical fuel injection
Cooling system
water-cooled
Power

50 ch
(50 hp)

Displacement

3,620 cm³
(122 US fl oz)

Number of cylinders

4 unit

Engine speed

2,600 rpm
(16,336 rad.min-1)

Bore

98 mm
(3.9 in)

Stroke

120 mm
(4.7 in)

Length

1,062 mm
(42 in)

Width

540 mm
(21 in)

Height

750 mm
(30 in)

Weight

300 kg
(661 lb)

Description

SCAM DIESEL marine engine was developed by carefully choosing the base engine "KUBOTA" and using our years-long experience in engine marinization. The following has been achieved: - higher power - higher torque - cleaner emissions The new 3 valve per cylinder construction enables cleaner combustion and decreases fuel consumption. The MoS2 coated pistons enable optimal clearance between the piston and the cylinder. SCAM DIESEL marine engines were designed to require minimal and simple maintenance. All elements for regular maintenance are easily accessible. The indirect cooling system with water and oil heat exchangers maintains optimal working temperature, which prolongs the engine’s operating life. The new fuel injection system guarantees decreased fuel consumption and environment friendlier combustion. Every engine is standard equipped with necessary electrical installations, instrument panel and emergency shutdown. Flexible engine mounts, cable mounts with cable clamps for single lever control, oil cooler and oil drain pump are placed on all engines. There is a possibility of connecting the refrigerator compressor and hydraulic pump. Altenator - 12V, 60 A Marine gearbox - mechanical TMC 260; hydraulic TM 345, TM 345A Exhaust pipe diameter - 75 mm Sea suction pipe diameter - 30 mm Fuel pipe connection diameter - 8 mm

Catalogs

SD 467
SD 467
2 Pages
