ship ATEX lighting
Boyle 100 Sammode

Add to MyNauticExpo favorites

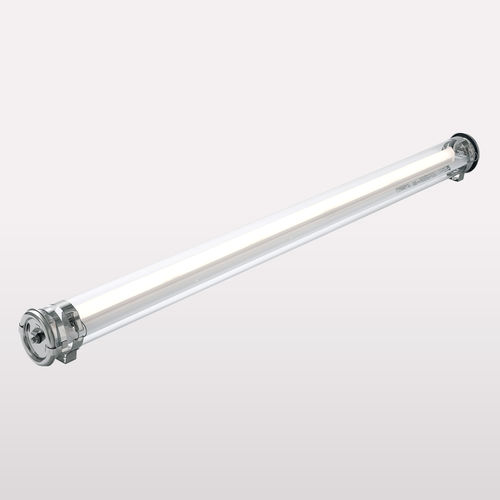

ship ATEX lighting ship ATEX lighting - Boyle 100
{{requestButtons}}

Characteristics

  • Options:

    for ships

Description

Led technology
Low in maintenance
Instantaneous full light output on ignition over the entire temperature range of use
Designed for repeated switching on and off
Tubular
Increased mechanical resistance
Easy to clean
Limited dirt accumulation
360° orientation
Impervious (ip68/ip69k)
Absolute imperviousness
No internal dust accumulation
Maximum light output
Adapted for pressure cleaning
Robust
Mechanical assembly insensitive to external mechanical and/or chemical aggression
Durable
High resistance to shocks and corrosion
Single piece casing, material and components selected to ensure long-term investment
Housing
• Ø100 mm diffuser in borosilicate glass for corrosive environments
• Also available in coextruded polycarbonate/PMMA for chemically aggressive environments and outdoor lighting
• End caps 1/2 ring press-formed in 304L stainless steel (316L also available)
• Gaskets moulded in EPDM
• Cable entry with cable gland
• Possibility for a model with 2 cable entries for looping-in (2 cable glands with stopper plug or 1 cable gland and 1 blind plug at the same cap)
Gear tray with led
• Gear tray in white powder coated steel
• Light mixing chamber
• Aluminium heat sink
• Optical diffuser
• High-efficiency LED moduls (145 lm/W)
- Service life: 50,000 hours L80/B50
- Colour temperature: 3000 K or 4000 K
- CRI > 80
• Integrated LED-Driver 220-240V 50/60Hz with constant current output
Installation - maintenance
• Off-load opening in an explosive environment
• Connection to a 3x2,5mm² terminal block
• Attachment with 2 bolt-fitted stainless steel straps with variable centre distance and allowing 360° orientation (available with closure by HSHC screw)
