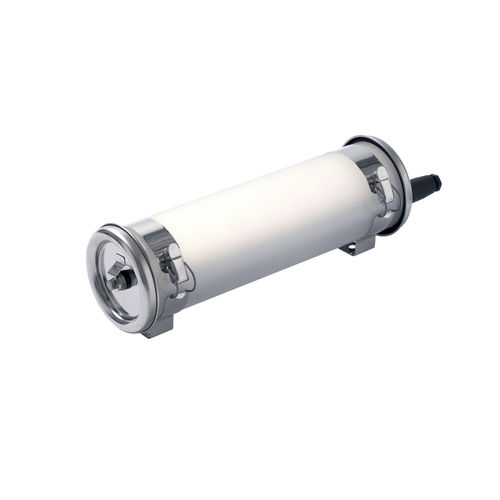

MAXWELL 100 LSC AMB Sammode

{{requestButtons}}

Characteristics

  • Application domain:

    for ships

  • Other characteristics:

    emergency, waterproof

Description

Technical key features
Optimum temp. -20 °C to +0°C
Application Open area
Power supply Central battery system
Technology LED
Emergency output 330 lm

Key features
■ Plug and Play installation with disconnectable plug
■ Infrequent maintenance
■ Resistant to detergents
■ Durable and maintainable luminaires


Technical features

light source
■ LED modules developed by Sammode
■ L80
■ Replaceable modules

Optics
■ Optimum light uniformity: 18 LEDs regularly distributed
■ Special satinised LED diffuser

Electronic equipment
Constant voltage output driver

Power supply
180-254 V 0/50/60 Hz

Electrical class
Class I

Operating temperature
-20 °C to +40°C

Connection
■ Nickel-plated brass cable gland Cable Ø 5-14 mm Terminal block 3 x 2,5 mm²
■ Disconnectable plug Cable Ø 8-10 mm Terminal block 3 x 1,5 mm²

Fixing
2 spring-loaded stainless steel fixing straps

Method of construction
■ Single-piece housing with high mechanical resistance
■ Long-term sealing maintained by axial screwing
