terminal ATEX lighting
KEPLER 100 Sammode

Add to MyNauticExpo favorites

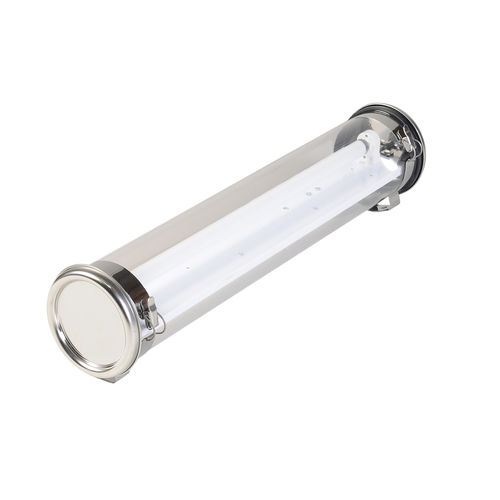

terminal ATEX lighting terminal ATEX lighting - KEPLER 100
{{requestButtons}}

Characteristics

  • Options:

    for terminals

Description

KEPLER 100
Easy maintenance impervious tubular light fitting for explosive environments

HOUSING
Ø100 mm coextruded polycarbonate/PMMA diffuser for outdoor lighting and chemically
aggressive environments
End caps 1/2 ring press-formed in 304L stainless steel (316L also available)
Gaskets moulded in EPDM
Cable entry with cable gland
Possibility for a model with 2 cable entries for looping-in (2 cable glands with stopper plug or 1 cable gland and 1 blind plug at the same cap)

GEAR TRAY
White powder coated steel sheet gear tray, indexed in rotation and lockable
Hot cathode electronic gear unit (EEI A2)
Industrial electronic ballast for difficult environments available
Internal wiring with silicone isolation braided with glass fibre

PROTECTION AGAINST EXPLOSION
Protection: Protection « n »
Compliant with the ATEX 94/9/EC directive and standards IEC 60079-0, IEC 60079-15, IEC 60079-31

CHARACTERISTICS
ELECTRICAL CLASS
CLASS 1
LAMP TYPE
1 T8 lamp
FIRE RESISTANCE
650°C
PROTECTION
IP68
SHOCK RESISTANCE
IK10
OPERATING TEMPERATURE
-20°C + 40°C
PROTECTION
AGAINST EXPLOSION
ZONES 2, 21 AND 22
CE 0080
II 3G Ex nA IIC T4 Gc
II 2D Ex tb IIIC T80°C Db IP68

MAIN REFERENCE
Electronic gear unit - without reflector
1x18W KEP100 118E G13 POME 113
1x36W KEP100 136E G13 POME 113
1x58W KEP100 158E G13 POME 113
Electronic gear unit - intensive reflector
1x18W KEP100 118E G13 POME 113 RI
1x36W KEP100 136E G13 POME 113 RI
1x58W KEP100 158E G13 POME 113 RI
