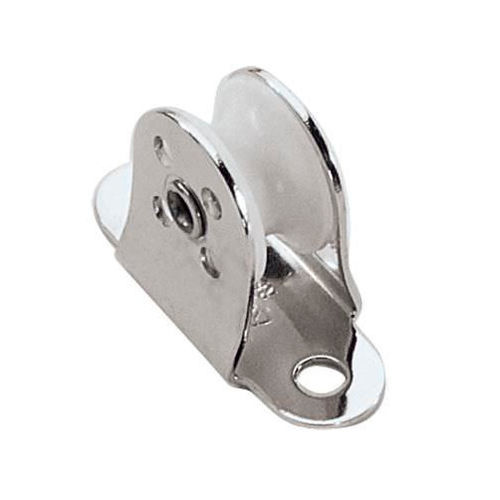

cheek block / vertical / single / with fork
RF917 Ronstan

{{requestButtons}}

Characteristics

  • Type:

    cheek, vertical

  • Number of sheaves:

    single

  • Configuration:

    with fork

  • Maximum line diameter:

    max. rope ø 8 mm

  • Application domain:

    for sailboats

  • Working load:

    250 kg (551.2 lb)

  • Breaking load:

    550 kg (1,212.5 lb)

Description

Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.
