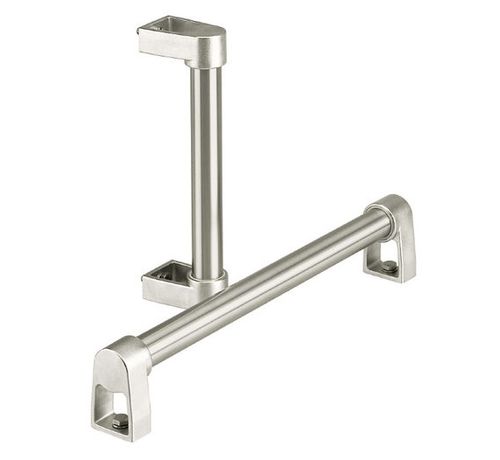

boat handle / for ships / stainless steel
ES-30 Series Rohde AG



  • Application domain:

    for boats, for ships

  • Other characteristics:

    stainless steel


High-grade stainless steel handles for universal use, fit together for any bore clearances. Particularly suitable also for the food industry.

Material and surface:
Handle shank made of precsion casting G-X7 CrNiMoNb 18 10; material no. G 4581. Connecting tubes and fixing material made of X5 CrNi 18 9; material no. 1.4301. Clamping and packing ring of silicon rub- ber in food quality.
Connection tubes finish ground and brushed. Handle shanks glass blasted and electropolished with a half-matt finish.
Long term temperature resistance from -60 °C to +200 °C.

Design advantages:
Splash proof tube-shank connection. Additional tube clamping through allen set screw.
Can be screwed on from front or behind. Easy to clean.

Standard screwing:
For screw attachment from in front or behind. Handle shanks including hexagon screws M8 x 25 DIN 933, nuts DIN 934 and washers DIN 125. Furthermore hexagon socket screws M6 x 6 DIN 913 for tube fixation just as clamping and packing rings.

Safety screwing:
For entrance doors, screw attachment from behind. Scope of supply same as standard version, however with cup square bolts M8 x 25 DIN 603.

Any desired handle lengths on request.

Stress resistance:
min. 1000 N.

Other material on request.
