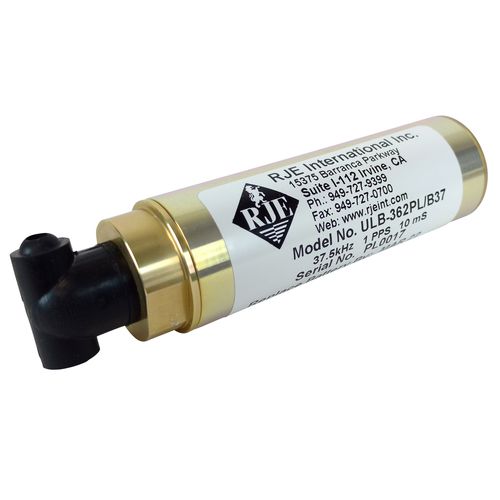

Acoustic underwater positioning beacon ULB-362PL

acoustic underwater positioning beacon
acoustic underwater positioning beacon
acoustic underwater positioning beacon
acoustic underwater positioning beacon
Add to favorites
Compare this product


Description

This underwater beacon can be externally activated through an underwater connector. Ideal for emergency relocation of ROVs, AUVs and towed bodies, the ULB-362PL automatically activates when a relay closes on the vehicle due to power loss. The ULB-362PL replaces the ELP-362PL and can send an acoustic signal for up to 90 days. OPERATING FREQUENCY 27, 37.5, 45kHz (+/- 1kHz) ACOUSTIC OUTPUT 160.5dB re 1μPa @ 1m RANGE 1 to 2km based on Sea State ACTIVATION Water Switch and power loss through external connector POWER SOURCE Lithium Battery with a 6-Year Shelf Life BATTERY LIFE 90 Days OPERATING DEPTH 20,000ft (6,096m) HOUSING MATERIAL Aluminum Housing Dimensions LENGTH 4.00in (10.16cm) WEIGHT 7.00oz (198g) max
