ROV/AUV video camera / underwater / HD / with zoom
C600 COLOR Remote Ocean System

{{requestButtons}}

Characteristics

  • Application domain:

    ROV/AUV

  • Type:

    underwater

  • Technology:

    HD

  • Other characteristics:

    with zoom

Description

Features

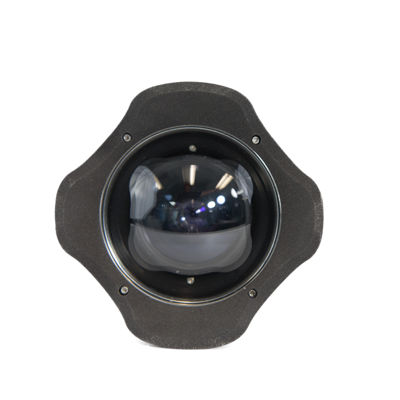

The C600 is an oceanographic HD color camera with 30x optical zoom. Several HD formats are available and it features a 6,000 meter depth rating, 12-36 VDC power, Titanium housing, and a 80° field of view. The C600 has a 2-year warranty and various connector options.



Key Specifications





Market: Subsea, Oceanographic
Uses: ROV’s, research, oil & gas
Resolution: 1080i HD
Field of view (water): 80° (Diagonal)
Sensitivity: 0.1 lux
Sensor: 1/3″ Sony
Focus: Auto / Manual
Iris control: Auto / Manual
Lens: f1.0 – 2.0
Video output: User Selectable 1080i, 1080P, 720P, NTSC, PAL; Format: HD or SD
Depth rating: 6,000 meters (19,685 ft)
Housing material: Titanium
Size: 3.6″D x 10.1″L (91.44 mm x 256.54 mm)
Weight: Air: 6.8 lbs (3 kg); Water: 3.1 lbs (1.4 kg)
Operating temp.: 22° – 100°F (-5 – 38°C); storage: 22° – 100°F (-20° – 60°C)
Viewing port: BK-7 Glass Dome
Control: RS-232
Voltage: 12 – 36 VDC
Current: 700 mA
Connectors: Various connectors available
Warranty: 2-year
