floating dock / mooring / for marinas / wood
PONTECH

{{requestButtons}}

Characteristics

  • Type:

    floating

  • Use:

    mooring

  • Applications:

    for marinas

  • Material:

    wood, concrete

Description

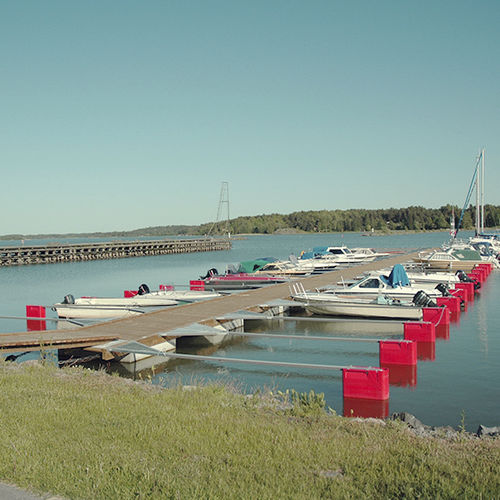

Our robust floating wood/concrete pier consists of a wooden superstructure of pressure-treated timber (class NTR/A) bolted to concrete floats with core of cellular plastic. This construction provides high buoyancy and makes the pier reliable and unsinkable. The pier can be made to the desired length without joints, and can subsequently be extended without visible joints. Anchoring is by means of cables, ropes or piles.

Technical data

MINIMUM LENGTH:
8.0 m
WIDTH:
2.4 m
MODULE LENGTH:
4.0/5.0 m
WEIGHT:
400 kg/m
CONCRETE/EXPOSURE CLASS:
C40/50 Vct 0.4, Luft 6.0% XS3 XF4 XC4
REINFORCEMENT:
Nps 50, B500BT
CELLULAR PLASTIC:
80Kpa
CONCRETE EMBEDDED GOODS:
Hot dip galvanised
BEARING JOISTS:
75*150 mm pressure-treated
DECKING:
34*145 mm pressure-treated
VERTICAL EDGE JOIST:
38*200 mm pressure-treated
HORIZONTAL EDGE JOIST:
34*145 mm pressure-treated
OTHER:
Pontech AB reserves the right to make changes to the construction
OTHER DIMENSIONS:
Quoted on request
