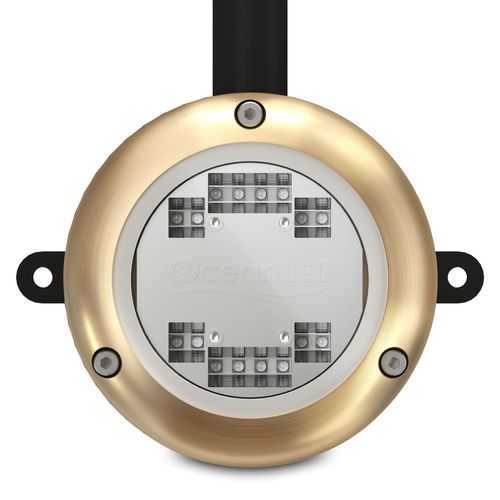

The Sport Underwater LED Dock Light Series, packing an impressive 5,000 fixture lumens into a small body, combined with advanced optics, creates a truly remarkable ‘Best-In-Class’ performance.
Create a stunning light display at your dock
Create a stunning backdrop to your dock parties and provide safety and security.
Floating Dock Option
Allows attachment to floating pontoons. The Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean.
90˚/20˚ Beam Angle - A true wide-angled, focused beam lights up a large area of the water.
optics
Brightest dock light in its class provides safety and security at your dock.
benefit-wrench
A choice of fixed or floating brackets, depending on tidal factors or dock type.
FEATURES
90° Top Beam 90° Top BeamUp to 5000 Fixture Lumens Up to 5000 Fixture Lumens20° Side Beam 20° Side BeamRectangular Beam Rectangular BeamBrightest dock light in its classProvides safety and security at your dockCreate a stunning backdrop to your dock partiesIncrease interest and value in your propertyEasi-Kleen floating bracket optionSimple to installActive Thermal Control prevents overheating10m Extension cable length (standard)
Technical
Lumens - 11600
Fixture Lumens - 5000
Typical LED life expectancy - 40,000+ Hours
Minimum-Maximum operating voltage DC - 20-32V DC
Current / Amp draw (DC) - 24V DC 2.4A
Driver type - Internal, Reverse Polarity Protected
Mounting Recommendations
Dock spacing - 5-10’ (1.5-3m)
Installation depth (To top of fixture) - 12” (30cm)
