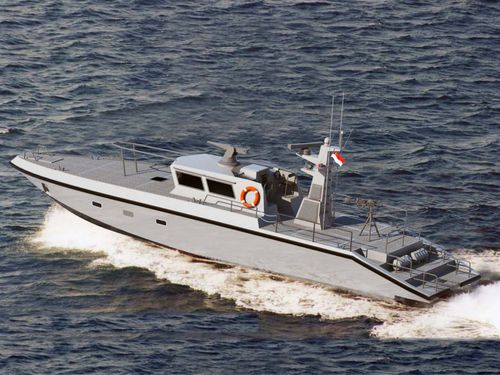

Patrol boat X19 COMBAT
inboard waterjetamphibious

patrol boat
patrol boat
patrol boat
patrol boat
patrol boat
patrol boat
Add to favorites
Compare this product


Characteristics

Type
patrol boat
Motor type
inboard waterjet
Other characteristics
amphibious
Length

19.4 m
(63'07" )

Passenger capacity

14 unit

Description

GENERAL DESCRIPTOIN The X19 is very seaworthy high-speed Craft, designed for interception, covert insertion of special forces, landing amphibious forces, interdiction, and paramilitary and civil patrol. Capable of pursuing targets into shallow water and estuaries, it can be armed with a remote stabilized gun, GPMG, grenade launchers, and mines . Adaptable with waterjets, conventional propellers, or surface drives, it can reach speeds of up to 65 knots – 45 knots respectively, depending on the selection of engines and drives. With waterjets they are highly maneuverable, and able to turn sharply and stop in 2 boatlengths. Spesification General Basic Functions : Patrol, Interdiction, Amphibious forces insertion Hull Material : Infused Vinylester Composite Dimensions Length Over All : 19.40 m Beam Over All : 4.25 m Draught : 0.85 m Displacement : 17,500 KG Fuel Capacity : 4,000 L Propulsion Main Engines : 2 x MAN Engine 1360 HP Gearbox : ZF 2050 Propulsion : MJP Waterjet DBR 350 Performance Speed (Max Power) : 55 knots Speed (Cruising) : 44 knots Range : 350 Nm Accomodation 14 Persons Deck Equipment Gun Mounting : 12.7 mm and 7.2 mm cal GPMG Electrical Equipment Generator sets : 6 - 9 KW Life Saving Equipment Fire Extinguisher : Auto FE, Portable Powder FE Rescue Equipment : Life jackets, Life Buoys, Life Raffs, MOB Recovery Sling Nautical Equipment Radar, GPS, AIS, C4 Systems and Sensors Communications VHF Radio, SBB Radio, Tactical Radio Voice/Data
