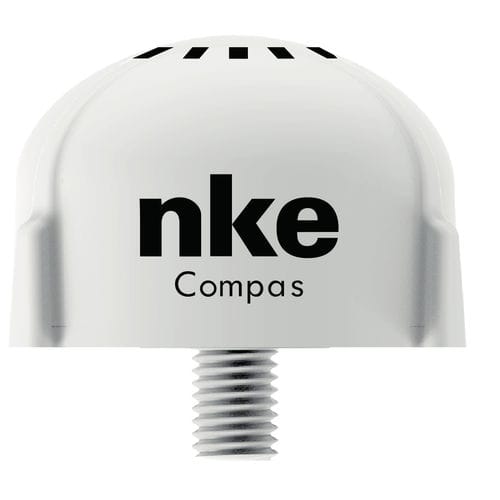

Geomagnetic field sensor fluxgate
for boats

geomagnetic field sensor
geomagnetic field sensor
geomagnetic field sensor
Add to favorites
Compare this product


Characteristics

Measured value
geomagnetic field
Application domain
for boats
Power supply

Max.: 16 V

Min.: 10 V

Description

This fluxgate compass connects to the nke bus and it feeds the system with the magnetic compass heading value. The mounting location must be free from any magnetic influence (VHF, high power cables, radar, etc.). The 10° step compensation ensures an accurate heading. Compass heading reference is one of the key functions necessary for calculating true wind direction. The fluxgate compass comes with a 6 meter TOPLINE cable and a bracket for bulkhead mounting. CHARACTERISTICS Consumption: 25 mA Resolution: 1° Weight: 200 g (without cable) Cable: 6 m Power supply: 10 to 16VDC Consumption: 25mA – Résolution : 1° Waterproof protection: IP67 Operating temperature: -10°C to +50°C Storage temperature: -20°C to +60°C Ref. 90-60-452 FEATURES A system that includes a speed sensor, a wind sensor and a fluxgate compass can process the data to display: True Wind direction VMG on the selected route, Dead reckoning bearing and distance to Man Over Board
