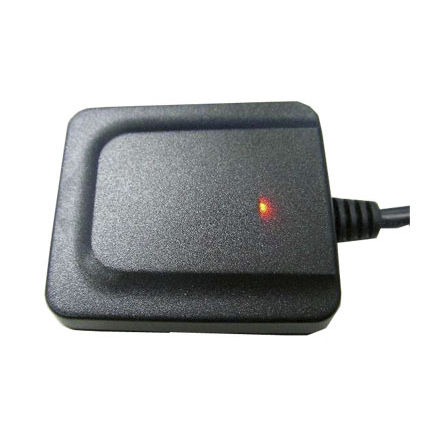

GNSS positioning system GR-701W

GPSreceiver

GR-701 is an easy to use, ultra-high performance, low power, industrial grade GPS smart antenna. The built-in u-blox7 chip and our experienced design provide fast acquisitions and excellent tracking performance. It supports either USB, TTL, or RS232-based mini-DIN interface. Applications  High-precision PPS time service  Automatic vehicle location  Vehicle navigation device  Fleet management Features  Based on u-blox7 low power single chip  High performance: -162dBm+ tracking sensitivity  GNSS support : either GPS/QZSS (default) or GLONASS  Up to 10Hz update rate (default 1Hz)  SBAS (WAAS/EGNOS/MSAS) support  OMA SUPL compliant AGPS support  RTCM 2.3 support  Backup battery support for faster position fix  External backup power option via I/O pin is available for special application of high working temperature.  USB/UART TTL/RS232 interface support  PPS support for timing application, including PPS over USB  LED for position fix indication  Built-in magnet  Compatible with GPSD PPS support (GR-701W)  Linux/Android support  Windows location sensor support (u-blox USB)  IPX7 Waterproof  Industrial operating temperature range: -40 ~ 85℃
