ship receiver / GPS / GLONASS
SGN-500 Navis USA LLC

Add to MyNauticExpo favorites

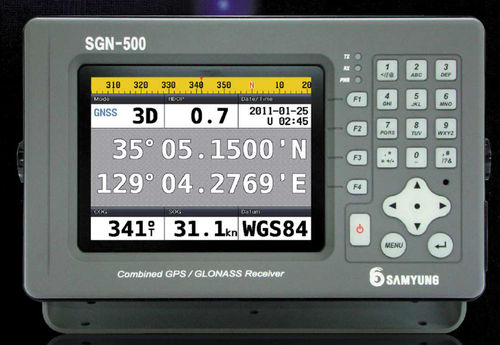

ship receiver / GPS / GLONASS ship receiver / GPS / GLONASS - SGN-500
{{requestButtons}}

Characteristics

  • Application domain:

    for ships

  • Function:

    GPS, GLONASS

Description


Features

• Fully compliance with IMO and MSC standards
• Compact size and light weighted; easy to install any locations
• Full automatic positioning can runs without initial default setting required
• Comfort/easy view for night navigation with LCD back-lighting controller
• Interfaced with external devices and DATA(NMEA-0183)
• Multi-user mode will be able to display with acceptable screen
Specifications

• Product Dimensions : 150mm(W) x 242mm(H) x 61mm(D)
• Product Display : 5.6 inch, TFT color, 640 x 480 pixel
• Supply Voltage : in 24 Volt; LCD’s brightness at minimum- 400mA and maximum- 510mA
• Operating Temperature : -15℃ ~ 55℃
• Rx Frequency : L1 1590MHz ± 20MHz
• Number of Channels : able to use 24 of different GNSS systems
• User’s card slot type : SD Card
• Geodetic Survey Devices : 5 different type (WGS-84, WGS-72, EARTH-90, PULKOVO1942, PULKOVO1995)
• Location Information Renewal Cycle : every 1 second
• Precision location : GPS/GLONASS: within ±30m Differential: within ±10m
• Data Communication : NMEA0183: 4800, 9600, 38400 (DTM, GBS, GGA, GLL, GNS, RMC, VTG, ZDA)
