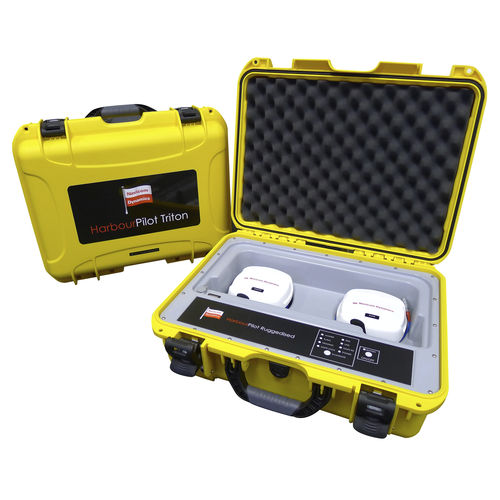

Achieve superior navigation and docking with the ultimate in positioning, heading and ROT performance available from HarbourPilot Triton.
HarbourPilot Triton provides marine pilots with reliable information, which is fully independent from ship’s data.
HarbourPilot Triton is a high precision, dual antenna system with full mGNSS (GPS, GLONASS, BEIDOU) with L1 and L2 bands. L2-activation greatly improves functionality and performance. This gives it much more data to work with, increasing both accuracy and reliability.
HarbourPilot Triton allows quick set-up by placing the antenna at any separation. RTK and DGPS base station UHF option is also available. Position accuracy can also be corrected to near-RTK levels using the Atlas satellite-based correction service anywhere in the world.
Performance and Specifications:
Position Receiver: L1/L2 mGNSS - GPS/ GLONASS/ GALILEO/ BEIDOU/QZSS
Position Accuracy: GNSS <2.5m, SBAS < 0.5m, DGPS < 0.5m, RTK < 0.02m, Atlas correction services H30=0.3m/H10=0.08m
HDG Accuracy: < 0.04° (at 2m antenna separation) || HDG Precision: 0.001°
ROT < 0.3°/min || ROT Precision 0.1°/min
AIS Rx range: 10 nm (typical)
Wireless: WiFi or Bluetooth (Class 1)
