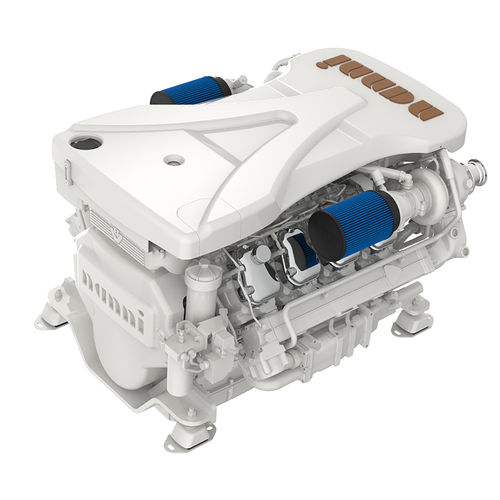

Inboard engine N16.1000 CR3
dieselboatingprofessional vessel

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, common-rail
Cooling system
water-cooled
Lubrication
full-flow oil filter
Pollution control standard
Tier 3
Other characteristics
4-stroke
Power

1,000 ch
(1,000 hp)

Displacement

16 l
(4 gal)

Number of cylinders

8 unit

Engine speed

2,300 rpm
(14,451 rad.min-1)

Max. installation angle

12 °

Bore

130 mm
(5.1 in)

Stroke

154 mm
(6.1 in)

Length

1,362 mm
(54 in)

Width

1,136 mm
(45 in)

Height

1,660 mm
(65 in)

Weight

1,660 kg
(3,660 lb)

Description

ENGINE BLOCK „ Extra high pressure fuel injection system, XPI „ Twin Turbochargers „ Protection covers FUEL SYSTEM „ Scania Engine Management System, EMS „ Fuel pre-filter with water separator „ Fuel filter LUBRICATION SystEm „ Oil filter, full flow „ Centrifugal oil cleaner „ Oil cooler, integrated in block „ Oil draining with plug „ Shallow oil sump „ Oil dipstick COOLING SYSTEM „ Sea water pump ELECTRICAL SystEm & Instrumentation „ Starter, 2-pole 7.0 kW „ Alternator, 2-pole 24V / 100A OTHER FEATURES „ Flywheel SAE 14’’ „ Silumin flywheel housing, SAE 1 flange „ Front-and-rear mounted engine brackets „ Closed crankcase ventilation „ Air cleaners „ Flexible engine mounts „ Damper OptionAL SYSTEMS & accessorIes „ Predisposition for SAE B hydraulic pump „ Axial front PTO „ Exhaust connections „ Cabin heater „ Rigid mounts „ Oil draining pump „ Oil level sensor „ Bilge pump RATINGS M5.L „ Up to 2000 hours per year „ Load factor up to 77% „ Full power for no more than 1 hour out of each 6 hours of operation. M6.S „ Up to 500 hours per year „ Load factor up to 50% „ Full power for no more than 1 hour out of each 12 hours of operation. TRANSMISSIONS „ Contact your Nanni representative for more details and availability about transmissions types and models range.
