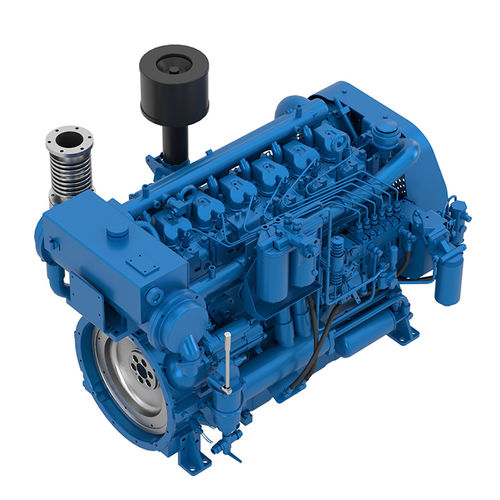

Inboard engine 6 W105M
dieselprofessional vesselturbocharged

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
professional vessel
Technology
turbocharged, direct fuel injection
Pollution control standard
Tier 2
Other characteristics
4-stroke
Power

136 kW, 168 kW, 185 kW
(184.9 hp, 228.4 hp, 251.5 hp)

Description

4 stroke diesel engine, direct injection Bore and stroke 105 x 130 mm Number of cylinders 6 in line Total displacement 6.75 litres Compression ratio 18/1 Engine rotation (ISO 1204 standard) CCW * Idle speed 650 rpm Weight (without water & oil) 810 kg Flywheel housing SAE 3 Flywheel SAE 11.5" Customer benefits Built for heavy duty applications with reference performances in its category Easy service with accessible components and unit cylinder heads Simple technology with mechanical injection Life cycle cost efficiency with extended mean time between overhauls (MBTO) Reference conditions Ambient temperature 25 °C / 77 °F Barometric pressure 100 kPa Relative humidity 30%R Raw water temperature 25 °C / 77 °F Fuel oil Relative density 0,840 ± 0,005 Lower calorific power 42 700 kJ/kg Consumption tolerances 0 ± 5% Inlet limit temperature 35 °C / 95 °F Engine and block Cast iron cylinder block, with replaceable cylinder liners Separate cast iron cylinder heads Replaceable valves guides and seats Steel forged crankshaft with 7 bearings Lube oil cooled light alloy piston with 3 high performance piston rings
