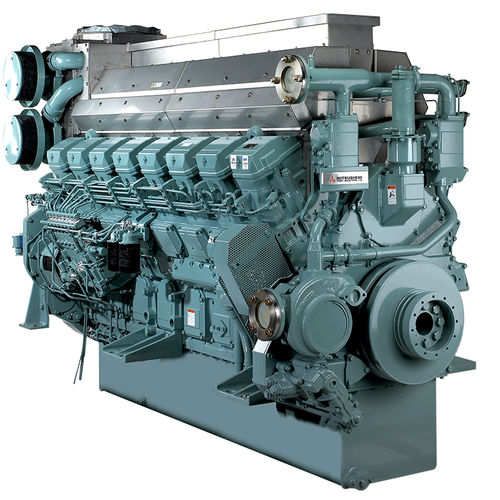

Inboard engine S16R-MPTAauxiliarydieselelectric
Add to favorites
Compare this product
Characteristics
- Type
- inboard, auxiliary
- Power source
- diesel, electric
- Market
- professional vessel, for ships
- Technology
- turbocharged, direct fuel injection
- Cooling system
- air-cooled
- Other characteristics
- for generator sets, 4-stroke
- Power
1,480 kW, 1,590 kW
(2,012.2 hp, 2,161.8 hp)- Displacement
65 l
(17 gal)- Number of cylinders
16 unit
- Engine speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Bore
170 mm
(6.7 in)- Stroke
180 mm
(7.1 in)- Length
2,931 mm
(115 in)- Width
1,512 mm
(60 in)- Height
1,960 mm
(77 in)- Weight
6,660 kg
(14,683 lb)
Description
The S16R-MPTA engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels.
Benefits
Reliable
Compact in size
Economical fuel consumption
Commonality of parts across the MHIET engine models, simplifies spare part management
Applications
Cruisers
Ferries
Offshore
Cylinder configuration - 16/60°V
Flywheel and housing - SAE 21 / SAE 00
Compression ratio - 14.0:1
Cooling method - single cooling circuit; charge air cooler integrated in jacket water system (aftercooler)
