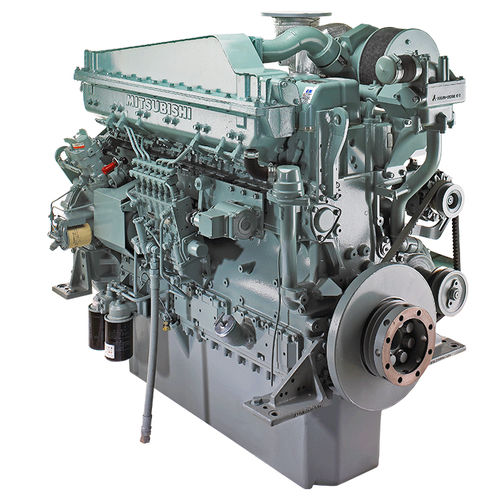

Inboard engine S6B3-T2MPTAW
propulsiondieselprofessional vessel

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion
Power source
diesel
Market
professional vessel, for ships
Technology
turbocharged, direct fuel injection
Cooling system
water-cooled
Pollution control standard
Tier 2
Other characteristics
4-stroke
Power

320 kW, 350 kW
(435.1 hp, 475.9 hp)

Displacement

15 l
(4 gal)

Number of cylinders

6 unit

Engine speed

1,940 rpm, 2,000 rpm
(12,189 rad.min-1, 12,566 rad.min-1)

Consumption

62 l/h
(16 us gal/h)

Bore

135 mm
(5.3 in)

Stroke

170 mm
(6.7 in)

Length

1,465 mm
(58 in)

Width

873 mm
(34 in)

Height

1,331 mm
(52 in)

Weight

1,310 kg
(2,888 lb)

Description

The S6B3-T2MPTAW engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels. Benefits Reliable Compact in size Economical fuel consumption Commonality of parts across the MHIET engine models, simplifies spare part management Applications Ferries Fishing Inland
